STDarcyBrinkmann example 15

!!! note "" This example tests and demonstrates the usage of Assemble() method.

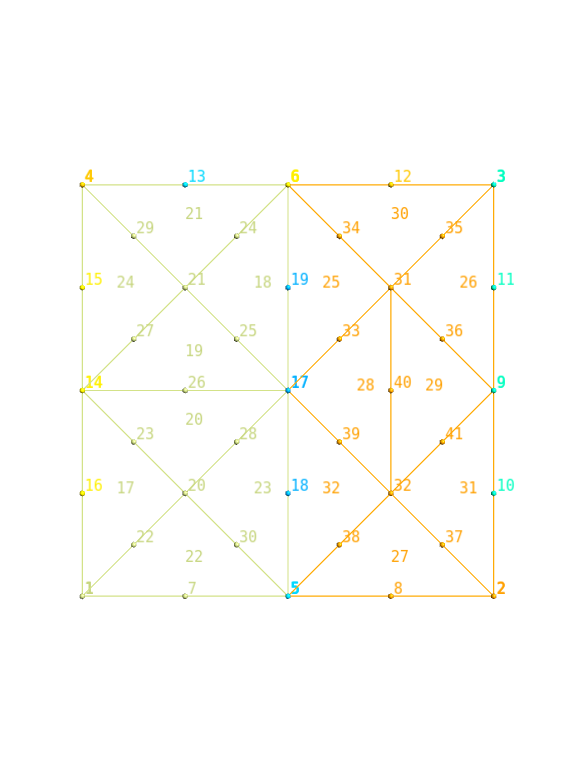

Mesh used for velocity field.

Modules & Classes

[[STDarcyBrinkmann_]]
[[ParameterList_]]
[[HDF5File_]]
[[Domain_]]
[[DomainPointer_]]
[[MeshSelection_]]
[[NeumannBC_]]

Usages

!!! note "" IMPORT the modules.

PROGRAM main
  USE easifemBase
  USE easifemClasses
  USE easifemMaterials
  USE easifemKernels
  USE STDarcyBrinkmann_Class
  IMPLICIT NONE

!!! note "" Define the variables.

  TYPE(STDarcyBrinkmann_) :: obj
  TYPE(ParameterList_) :: param
  TYPE(HDF5File_) :: domainFileForPressure
  TYPE(HDF5File_) :: domainFileForVelocity
  TYPE(MeshSelection_) :: region
  TYPE(Domain_), TARGET :: domainForPressure
  TYPE(Domain_), TARGET :: domainForVelocity
  TYPE(DomainPointer_) :: domains(2)
  CLASS(DirichletBC_), POINTER :: dbc => NULL()
  CHARACTER(LEN=*), PARAMETER :: &
    & domainFileNameForPressure = "./mesh_tri3.h5"
  CHARACTER(LEN=*), PARAMETER :: &
    & domainFileNameForVelocity = "./mesh_tri6.h5"

!!! note "" Initiate an instance of [[ParameterList_]], param, this will be used to initiate several objects.

  CALL FPL_INIT(); CALL param%Initiate()

!!! note "" Setting parameters for an instance of [[STDarcyBrinkmann_]].

  CALL SetSTDarcyBrinkmannParam( &
    & param=param, &
    & engine="NATIVE_SERIAL", &
    & nnt=2, &
    & startTime=0.0_DFP, &
    & endTime=10.0_DFP, &
    & dt=0.001_DFP, &
    & CoordinateSystem=KERNEL_2D, &
    & tPorousMaterials=2, &
    & tFluidMaterials=1, &
    & tDirichletBCForPressure=1, &
    & tDirichletBCForVelocity=3, &
    & domainFileForPressure=domainFileNameForPressure, &
    & domainFileForVelocity=domainFileNameForVelocity)

!!! note "" Setting [[LinSolver_]] parameters.

  CALL SetLinSolverParam( &
    & param=param, &
    & solverName=LIS_GMRES,&
    & preconditionOption=LEFT_PRECONDITION, &
    & convergenceIn=convergenceInRes, &
    & convergenceType=relativeConvergence, &
    & maxIter=100, &
    & relativeToRHS=.TRUE., &
    & KrylovSubspaceSize=20, &
    & rtol=1.0D-10, &
    & atol=1.0D-10 )

!!! note "domainForPressure" Initiate an [[HDF5File_]] for making [[Mesh_]] and/or [[Domain_]] for pressure variable.

  CALL domainFileForPressure%Initiate(filename=domainFileNameForPressure, &
    & MODE="READ")
  CALL domainFileForPressure%Open()
  CALL domainForPressure%Initiate(domainFileForPressure, "")

!!! note "domainForVelocity" Initiate an [[HDF5File_]] for making [[Mesh_]] and/or [[Domain_]] for velocity variable.

  CALL domainFileForVelocity%Initiate(filename=domainFileNameForVelocity, &
  & MODE="READ")
  CALL domainFileForVelocity%Open()
  CALL domainForVelocity%Initiate(domainFileForVelocity, "")

!!! note "domains" Packing domains in a vector of [[DomainPointer_]]

  domains(1)%ptr => domainForVelocity
  domains(2)%ptr => domainForPressure

!!! note "" deallocate domain files

  CALL domainFileForPressure%Deallocate()
  CALL domainFileForVelocity%Deallocate()

!!! note "Initiate STDarcyBrinkmann" Initiate an instance of [[STDarcyBrinkmann_]]

  CALL obj%Initiate(param=param, domains=domains)

!!! note "porousMaterial 1" Adding a porous material.

  CALL region%Initiate(isSelectionByMeshID=.TRUE.)
  CALL region%Add(dim=domainForPressure%GetNSD(), meshID=[1])
  CALL SetPorousMaterialParam(param=param, &
    & name="porousMaterial", &
    & massdensity=1700.0_DFP, &
    & porosity=0.8_DFP, &
    & permeability=1.0D-10, &
    & stressStrainModel="LinearPoroElasticModel")

Adding material parameters.

  CALL SetLinearPoroElasticModelParam( &
    & param=param,  &
    & ElasticityType=IsoLinearElasticModel, &
    & isPlaneStress=.FALSE., &
    & isPlaneStrain=.TRUE., &
    & PoissonRatio=0.3_DFP, &
    & YoungsModulus=1.0D+6)

  CALL obj%AddPorousMaterial( &
    & materialNo=1, &
    & materialName="porousMaterial", &
    & param=param, &
    & region=region)
  CALL region%Deallocate()

!!! note "porousMaterial 2" Adding a porous material.

  CALL region%Initiate(isSelectionByMeshID=.TRUE.)
  CALL region%Add(dim=domainForPressure%GetNSD(), meshID=[2])
  CALL SetPorousMaterialParam( &
    & param=param, &
    & name="porousMaterial", &
    & massdensity=1700.0_DFP, &
    & porosity=0.8_DFP, &
    & permeability=1.0D-10, &
    & stressStrainModel="LinearPoroElasticModel")

  CALL SetLinearPoroElasticModelParam( &
    & param=param,  &
    & ElasticityType=IsoLinearElasticModel, &
    & isPlaneStress=.FALSE., &
    & isPlaneStrain=.TRUE., &
    & PoissonRatio=0.3_DFP, &
    & YoungsModulus=1.0D+6)

  CALL obj%AddPorousMaterial( &
    & materialNo=2, &
    & materialName="porousMaterial", &
    & param=param, &
    & region=region)
  CALL region%Deallocate()

!!! note "fluidMaterial 1" Adding a fluid material.

  CALL region%Initiate(isSelectionByMeshID=.TRUE.)
  CALL region%Add(dim=domainForVelocity%GetNSD(), meshID=[1, 2])

!!! note "SetFluidMaterialParam" Setting PARAMETER for [[FluidMaterial_]]

  CALL SetFluidMaterialParam( &
    & param=param, &
    & name="fluidMaterial", &
    & massDensity=1000.0_DFP, &
    & dynamicViscosity=0.001_DFP, &
    & stressStrainModel="NewtonianFluidModel")

!!! note "SetNewtonianFluidModelParam" Setting parameters for [[NewtonianFluidModel_]] which is a material model

  CALL SetNewtonianFluidModelParam(param=param, Viscosity=0.001_DFP)

Adding fluid material.

  CALL obj%AddFluidMaterial( &
    & materialNo=1, &
    & materialName="fluidMaterial", &
    & param=param, &
    & region=region)
  CALL region%Deallocate()

!!! note "Dirichlet boundary" Let us set [[NeumannBC_]] for velocity. We are prescribing x component of the velocity.

First we set the necessary parameters.

  CALL SetDirichletBCParam( &
    & param=param, &
    & name="ZeroV1", &
    & idof=1, &
    & nodalValueType=Constant, &
    & useFunction=.FALSE.)

Now we SELECT the region, which is top and bottom boundary.

  CALL region%Initiate(isSelectionByMeshID=.TRUE.)
  CALL region%Add(dim=1, meshID=[1, 2, 4, 5])
  CALL region%Set()

Now we CALL AddVelocityBC method of [[STDarcyBrinkmann_]]. THEN we get the POINTER to the [[NeumannBC_]] which is created by the AddVelocityBC method. THEN we CALL Set method on this POINTER.

  CALL obj%AddVelocityBC(dbcNo=1, param=param, boundary=region)
  CALL region%Deallocate()
  dbc => obj%GetVelocityBCPointer(dbcNo=1)
  CALL dbc%Set(ConstantNodalValue=0.0_DFP)
  dbc => NULL()

!!! note "Dirichlet boundary" Let us set [[NeumannBC_]] for velocity (boundary condition at the inlet). We are prescribing x component of the velocity.

  CALL SetDirichletBCParam(param=param, name="UpstreamV1", &
    & idof=1, nodalValueType=Constant, useFunction=.FALSE.)

Now we SELECT the inlet region, which is the left-boundary.

  CALL region%Initiate(isSelectionByMeshID=.TRUE.)
  CALL region%Add(dim=1, meshID=[6])
  CALL region%Set()

Now that we have build the inlet region, let us add it to kernel for the velocity Dirichlet boundary condition.

  CALL obj%AddVelocityBC(dbcNo=2, param=param, boundary=region)
  CALL region%Deallocate()
  dbc => obj%GetVelocityBCPointer(dbcNo=2)
  CALL dbc%Set(ConstantNodalValue=0.1_DFP); dbc => NULL()

!!! note "Dirichlet boundary" Let us set [[NeumannBC_]] for velocity. We are prescribing y component of the velocity.

Let us set the parameter for [[NeumannBC_]]

  CALL SetDirichletBCParam( &
    & param=param, &
    & name="ZeroV2", &
    & idof=2, &
    & nodalValueType=Constant, &
    & useFunction=.FALSE.)

Now select the region, which is the entire boundary.

  CALL region%Initiate(isSelectionByMeshID=.TRUE.)
  CALL region%Add(dim=1, meshID=[1, 2, 4, 5, 6, 3])
  CALL region%Set()

Adding region to the kernel for setting boundary condition for velocity field.

  CALL obj%AddVelocityBC(dbcNo=3, param=param, boundary=region)
  CALL region%Deallocate()
  dbc => obj%GetVelocityBCPointer(dbcNo=3)
  CALL dbc%Set(ConstantNodalValue=0.1_DFP); dbc => NULL()

!!! note "Dirichlet boundary" Let us set [[NeumannBC_]] for pressure. We are prescribing zero pressure condition at the outlet.

Define the parameters for constructing [[NeumannBC_]] instance.

  CALL SetDirichletBCParam( &
    & param=param, &
    & name="ZeroP", &
    & idof=1, &
    & nodalValueType=Constant, &
    & useFunction=.FALSE.)

Construct an outlet region.

  CALL region%Initiate(isSelectionByMeshID=.TRUE.)
  CALL region%Add(dim=1, meshID=[3])
  CALL region%Set()

Add the boundary condition and outlet region of the kernel by using the method called AddPressureBC

  CALL obj%AddPressureBC(dbcNo=1, param=param, boundary=region)
  CALL region%Deallocate()
  dbc => obj%GetPressureBCPointer(dbcNo=1)
  CALL dbc%Set(ConstantNodalValue=0.0_DFP)
  dbc => NULL()

!!! success "Set" Now that we are done with the setup, we should call Set method. Then, the kernel will check the data, configuration, and intiate the appropriate variables.

  CALL obj%Set()

!!! success "AssembleTanMat" Now that we are done with the setup, we should call Set method. Then, the kernel will check the data, configuration, and intiate the appropriate variables.

  CALL obj%AssembleTanmat()
  CALL obj%AssembleRHS()

!!! settings "Cleanup"

  CALL obj%Deallocate()
  CALL domainForPressure%Deallocate()
  CALL domainForVelocity%Deallocate()
  CALL param%Deallocate(); CALL FPL_FINALIZE()
END PROGRAM main
