LidDrivenCavity example 1
!!! note "" This example solves a benchmark problem of LidDrivenCavity.

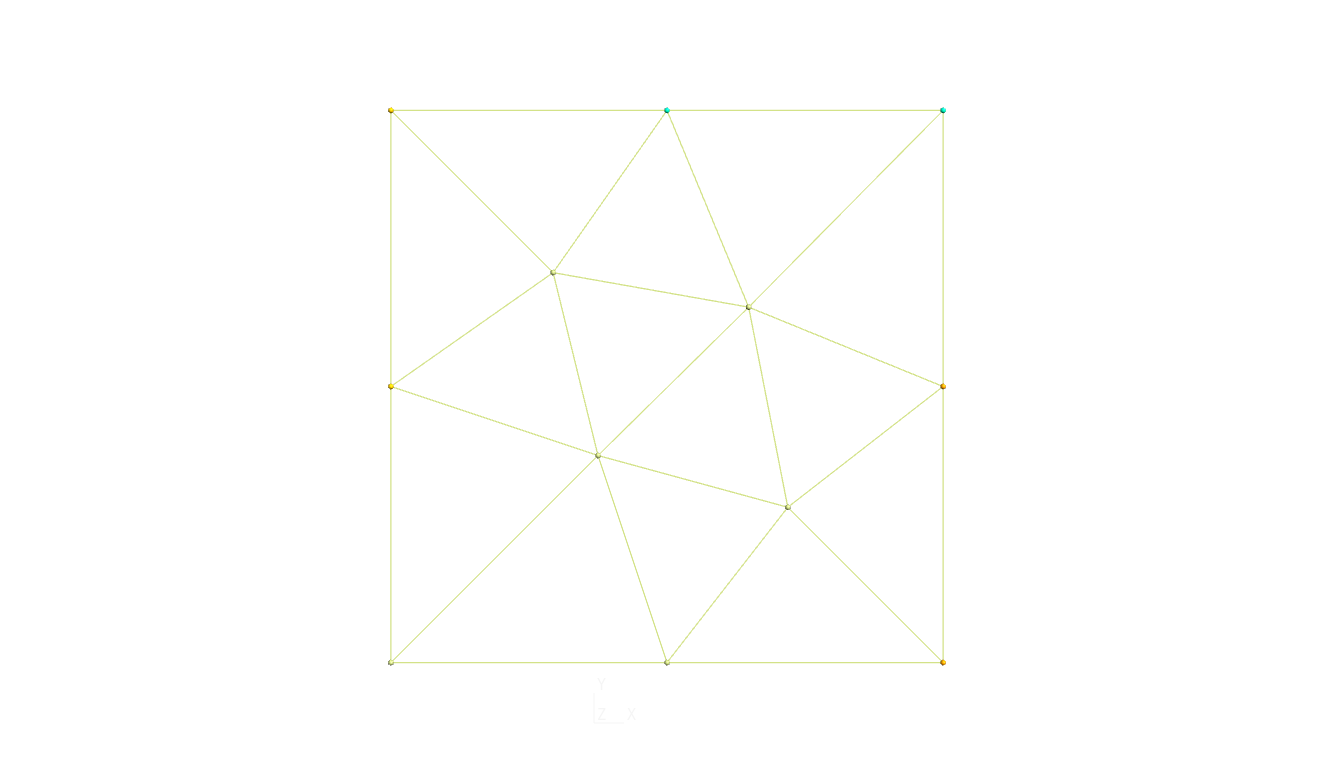

- Mesh used for velocity and pressure field is the same.
Modules & Classes
- [[STDarcyBrinkmann_]]
Usages
!!! note "" IMPORT the modules.
PROGRAM main
USE easifemBase
USE easifemClasses
USE easifemMaterials
USE easifemKernels
USE STDarcyBrinkmann_Class
IMPLICIT NONE
!!! note "" Define the variables.
TYPE(STDarcyBrinkmann_) :: obj
TYPE(ParameterList_) :: param
TYPE(HDF5File_) :: domainFileForPressure
TYPE(HDF5File_) :: domainFileForVelocity
TYPE( HDF5File_ ) :: outfile
TYPE(MeshSelection_) :: region
TYPE(Domain_), TARGET :: domainForPressure
TYPE(Domain_), TARGET :: domainForVelocity
TYPE(DomainPointer_) :: domains(2)
CLASS(DirichletBC_), POINTER :: dbc => NULL()
CHARACTER(LEN=*), PARAMETER :: &
& domainFileNameForPressure = "./mesh.h5"
CHARACTER(LEN=*), PARAMETER :: &
& domainFileNameForVelocity = "./mesh.h5"
CHARACTER( LEN = * ), PARAMETER :: &
& outfileName="./LidDrivenCavity.output.h5"
INTEGER(I4B), PARAMETER :: nnt = 2
INTEGER(I4B), PARAMETER :: TotalTimeSteps = 1
REAL(DFP), PARAMETER :: startTime=0.0_DFP
REAL(DFP), PARAMETER :: endTime=1.0_DFP
REAL(DFP), PARAMETER :: dt=0.01_DFP
INTEGER( I4B ), PARAMETER :: maxIter=5
REAL( DFP ), PARAMETER :: tol_Pressure=1.0D-8
REAL( DFP ), PARAMETER :: tol_Velocity=1.0D-8
INTEGER(I4B), PARAMETER :: tPorousMaterials = 1
INTEGER(I4B), PARAMETER :: tFluidMaterials = 1
INTEGER(I4B), PARAMETER :: tDirichletBCForVelocity = 3
INTEGER(I4B), PARAMETER :: tDirichletBCForPressure = 1
INTEGER(I4B), PARAMETER :: maxIter_LinSolver = 20 * 100
INTEGER(I4B), PARAMETER :: KrylovSubspaceSize = 20
REAL(DFP), PARAMETER :: rtol_LinSolver=1.0D-8
REAL(DFP), PARAMETER :: atol_LinSolver=1.0D-12
INTEGER(I4B), PARAMETER :: LinSolver_name = LIS_GMRES
INTEGER(I4B), PARAMETER :: preconditionOption = LIS_GMRES
REAL(DFP), PARAMETER :: porosity=1.0
REAL(DFP), PARAMETER :: massdensity_soil=1700.0
REAL(DFP), PARAMETER :: permeability=1.0D+20
REAL(DFP), PARAMETER :: massdensity_fluid=1000.0
REAL(DFP), PARAMETER :: dynamicViscosity=0.001_DFP
REAL(DFP), PARAMETER :: V_TOP=0.001_DFP
LOGICAL( LGT ) :: convg
INTEGER( I4B ) :: iter
INTEGER( I4B ) :: its
!!! note "" Initiate an instance of [[ParameterList_]], param, this will be used to initiate several objects.
CALL FPL_INIT(); CALL param%Initiate()
!!! note "SetSTDarcyBrinkmannParam"
CALL SetSTDarcyBrinkmannParam( &
& param=param, &
& engine="NATIVE_SERIAL", &
& nnt=nnt, &
& startTime=startTime, &
& endTime=endTime, &
& dt=dt, &
& CoordinateSystem=KERNEL_2D, &
& maxIter=maxIter, &
& convergenceType=absoluteConvergence, &
& toleranceForPressure=tol_pressure, &
& toleranceForVelocity=tol_velocity, &
& tPorousMaterials=tPorousMaterials, &
& tFluidMaterials=tFluidMaterials, &
& tDirichletBCForPressure=tDirichletBCForPressure, &
& tDirichletBCForVelocity=tDirichletBCForVelocity, &
& domainFileForPressure=domainFileNameForPressure, &
& domainFileForVelocity=domainFileNameForVelocity)
!!! note "LinSolver"
CALL SetLinSolverParam( &
& param=param, &
& solverName=LinSolver_name,&
& preconditionOption=NO_PRECONDITION, &
& convergenceIn=convergenceInRes, &
& convergenceType=relativeConvergence, &
& maxIter=maxIter_LinSolver, &
& relativeToRHS=.TRUE., &
& KrylovSubspaceSize=KrylovSubspaceSize, &
& rtol=rtol_LinSolver, &
& atol=atol_LinSolver )
!!! note "domainForPressure"
CALL domainFileForPressure%Initiate( &
& filename=domainFileNameForPressure, &
& MODE="READ")
CALL domainFileForPressure%Open()
CALL domainForPressure%Initiate(domainFileForPressure, "")
CALL domainFileForPressure%Deallocate()
!!! note "domainForVelocity"
CALL domainFileForVelocity%Initiate(filename=domainFileNameForVelocity, &
& MODE="READ")
CALL domainFileForVelocity%Open()
CALL domainForVelocity%Initiate(domainFileForVelocity, "")
CALL domainFileForVelocity%Deallocate()
!!! note "domains" Packing domains in a vector of [[DomainPointer_]]
domains(1)%ptr => domainForVelocity
domains(2)%ptr => domainForPressure
!!! note "STDarcyBrinkmann%Initiate"
CALL obj%Initiate(param=param, domains=domains)
!!! note "AddPorousMaterial"
CALL region%Initiate(isSelectionByMeshID=.TRUE.)
!!
CALL region%Add(dim=obj%nsd, meshID=[1])
!!
CALL SetPorousMaterialParam( &
& param=param, &
& name="porousMaterial", &
& massdensity=massdensity_soil, &
& porosity=porosity, &
& permeability=permeability )
!!
CALL obj%AddPorousMaterial( &
& materialNo=1, &
& materialName="porousMaterial", &
& param=param, &
& region=region)
!!
CALL region%Deallocate()
!!! note "AddFluidMaterial"
CALL region%Initiate(isSelectionByMeshID=.TRUE.)
!!
CALL region%Add(dim=obj%nsd, meshID=[1])
!!
CALL SetFluidMaterialParam( &
& param=param, &
& name="fluidMaterial", &
& massDensity=massdensity_fluid, &
& dynamicViscosity=dynamicViscosity )
!!
CALL obj%AddFluidMaterial( &
& materialNo=1, &
& materialName="fluidMaterial", &
& param=param, &
& region=region )
!!
CALL region%Deallocate()
!!! note "AddVelocityBC"
CALL SetDirichletBCParam( &
& param=param, &
& name="Vx=0", &
& idof=1, &
& nodalValueType=Constant, &
& useFunction=.FALSE.)
!!
CALL region%Initiate( &
& isSelectionByMeshID=.TRUE., &
& isSelectionByNodeNum=.TRUE. )
CALL region%Add(dim=obj%nsd-1, meshID=[1])
CALL region%Add(nodenum=&
& domainForVelocity%getInternalNptrs( &
& dim=obj%nsd-1, &
& entityNum=[2,4] ) )
CALL region%Set()
!!
CALL obj%AddVelocityBC(dbcNo=1, param=param, boundary=region)
CALL region%Deallocate()
dbc => obj%GetVelocityBCPointer(dbcNo=1)
CALL dbc%Set(ConstantNodalValue=0.0_DFP)
dbc => NULL()
!!! note "AddVelocityBC"
CALL SetDirichletBCParam( &
& param=param, &
& name="Vy=0", &
& idof=2, &
& nodalValueType=Constant, &
& useFunction=.FALSE.)
!!
CALL region%Initiate(isSelectionByMeshID=.TRUE.)
CALL region%Add(dim=obj%nsd-1, meshID=[1])
CALL region%Add(nodenum=&
& domainForVelocity%getInternalNptrs( &
& dim=obj%nsd-1, &
& entityNum=[2,4] ) )
CALL region%Set()
!!
CALL obj%AddVelocityBC(dbcNo=2, param=param, boundary=region)
CALL region%Deallocate()
dbc => obj%GetVelocityBCPointer(dbcNo=2)
CALL dbc%Set(ConstantNodalValue=0.0_DFP)
dbc => NULL()
!!! note "AddVelocityBC"
CALL SetDirichletBCParam( &
& param=param, &
& name="Vx=V", &
& idof=1, &
& nodalValueType=Constant, &
& useFunction=.FALSE.)
!!
CALL region%Initiate(isSelectionByMeshID=.TRUE.)
CALL region%Add(dim=obj%nsd-1, meshID=[3])
CALL region%Set()
!!
CALL obj%AddVelocityBC(dbcNo=3, param=param, boundary=region)
CALL region%Deallocate()
dbc => obj%GetVelocityBCPointer(dbcNo=3)
CALL dbc%Set(ConstantNodalValue=V_TOP)
dbc => NULL()
!!! note "AddPressureBC"
CALL SetDirichletBCParam( &
& param=param, &
& name="P=0", &
& idof=1, &
& nodalValueType=Constant, &
& useFunction=.FALSE.)
!!
CALL region%Initiate(isSelectionByMeshID=.TRUE.)
CALL region%Add(dim=obj%nsd-1, meshID=[3])
CALL region%Set()
!!
CALL obj%AddPressureBC(dbcNo=1, param=param, boundary=region)
CALL region%Deallocate()
dbc => obj%GetPressureBCPointer(dbcNo=1)
CALL dbc%Set(ConstantNodalValue=0.0_DFP)
dbc => NULL()
!!! note "Set"
CALL obj%Set( )
!!CALL obj%Display( 'obj: ' )
CALL outfile%Initiate(outfileName, "NEW")
CALL outfile%Open()
!!! note "AssembleTanMat"
DO its = 1, TotalTimeSteps
obj%currentTimeStep = its
CALL obj%ApplyDirichletBC()
DO iter = 1, maxIter
obj%iterdata%iterationNumber=iter
CALL obj%AssembleTanmat()
CALL obj%AssembleRHS()
CALL obj%Assemble()
CALL obj%Solve()
convg = obj%isConverged()
CALL obj%sol%Display( &
& 'main, solution at iteration ' &
& // tostring( iter ), &
& unitno=10 )
IF( convg ) THEN
CALL obj%Update(reset=.FALSE.)
EXIT
ELSE
CALL obj%UpdateIteration(reset=.FALSE.)
END IF
END DO
!!
IF( .NOT. convg ) THEN
CALL Display( 'No convergence achieved, stopped ' )
STOP
ELSE
CALL obj%WriteData(outfile, "/"//tostring(its))
END IF
END DO
!!! settings "Cleanup"
CALL outfile%Deallocate()
CALL obj%Deallocate()
CALL domainForPressure%Deallocate()
CALL domainForVelocity%Deallocate()
CALL param%Deallocate(); CALL FPL_FINALIZE()
END PROGRAM main
