InitiateFacetToCellData

This method creates the facet to cell element-data.

In this method we set the relation between element of a facet mesh (Facet elements) and master and slave domain.

A facet mesh usually denotes the boundary or part of boundary of master and slave domain.

caution

Please make sure that nodeToElements data is initiated in the cell mesh (or domain) before calling this routine.

Interface1

܀ Interface

INTERFACE
  MODULE SUBROUTINE InitiateFacetToCellData(obj, facetMesh, &
    & cellMesh, dim, entityNum, isMaster)
    CLASS(DomainConnectivity_), INTENT(INOUT) :: obj
    !! Domain connectivity data
    CLASS(Mesh_), INTENT(INOUT) :: facetMesh
    !! Mesh of facet elements
    CLASS(Mesh_), INTENT(INOUT) :: cellMesh
    !! Master mesh
    INTEGER(I4B), INTENT(IN) :: dim
    INTEGER(I4B), INTENT(IN) :: entityNum
    LOGICAL(LGT), INTENT(IN) :: isMaster
    !! if true then cell Mesh is master cell
    !! if false then cell mesh is slave cell
  END SUBROUTINE InitiateFacetToCellData
END INTERFACE

• This routine initiate facetToCell for given facetMesh and CellMesh
• In this case facetMesh should be a boundary of cellMesh
• This routine should not be used for internal boundary.

️܀ Example 1

In this example we will see how to use InitiateFacetToCellData. We use this routine to compute the facet to cell data between a cell mesh and a facet mesh. The facet mesh is the boundary of the mesh.

The Cellmesh is shown below.

Importing modules and variables

PROGRAM main
  USE easifemBase
  USE easifemClasses
  IMPLICIT NONE
  TYPE( DomainConnectivity_ ) :: obj
  TYPE( Domain_ ) :: cellDomain
  TYPE( HDF5File_ ) :: cellDomainFile
  CHARACTER( LEN=* ), PARAMETER :: cellDomainFileName="./mesh_tri3.h5"
  CLASS( Mesh_ ), POINTER :: cellMesh
  CLASS( Mesh_ ), POINTER :: facetMesh
  CLASS( ReferenceElement_ ), POINTER :: refelem
  INTEGER( I4B ) :: ii, iel

Open the mesh file for cellDomain

  CALL cellDomainFile%Initiate( FileName=cellDomainFileName, MODE="READ" )
  CALL cellDomainFile%Open()

Initiate the cellDomain

  CALL cellDomain%Initiate( cellDomainFile, "")

Make a pointer to cellMesh and facet mesh

  cellMesh => cellDomain%getMeshPointer( dim=2, entityNum=1)
  facetMesh => cellDomain%getMeshPointer( dim=1, entityNum=2 )

Initiate FacetTOCellData.

  CALL obj%InitiateFacetToCellData( facetMesh=facetMesh, &
    & cellMesh=cellMesh, dim=2, entityNum=1, isMaster=.TRUE. )
  CALL obj%DisplayFacetToCellData( msg="facetToCell=" )

  CALL cellDomainFile%Deallocate()
  CALL cellDomain%Deallocate()
  CALL obj%Deallocate()
END PROGRAM main

️܀ Example 2

In this example we will see how to use InitiateFacetToCellData. We use this routine to compute the facet to cell data between a cell mesh and a facet mesh. The facet mesh is the boundary of the mesh. This example is similar to the example 21, but in this case we use isMaster=.FALSE.

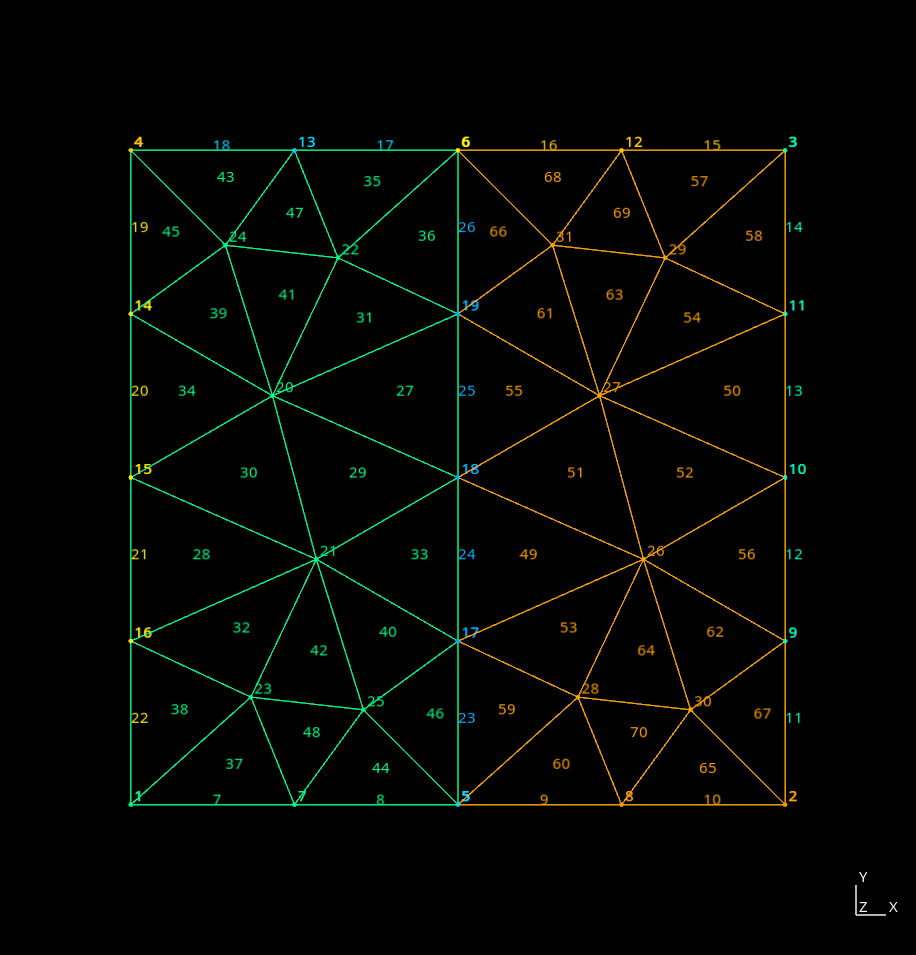

The Cellmesh is shown below.

Importing modules and variables

PROGRAM main
  USE easifemBase
  USE easifemClasses
  IMPLICIT NONE
  TYPE( DomainConnectivity_ ) :: obj
  TYPE( Domain_ ) :: cellDomain
  TYPE( HDF5File_ ) :: cellDomainFile
  CHARACTER( LEN=* ), PARAMETER :: cellDomainFileName="./mesh_tri3b.h5"
  CLASS( Mesh_ ), POINTER :: cellMesh
  CLASS( Mesh_ ), POINTER :: facetMesh
  CLASS( ReferenceElement_ ), POINTER :: refelem
  INTEGER( I4B ) :: ii, iel

Open the mesh file for cellDomain

  CALL cellDomainFile%Initiate( FileName=cellDomainFileName, MODE="READ" )
  CALL cellDomainFile%Open()

Initiate the cellDomain

  CALL cellDomain%Initiate( cellDomainFile, "")

Make a pointer to cellMesh and facet mesh

  cellMesh => cellDomain%getMeshPointer( dim=2, entityNum=1)
  facetMesh => cellDomain%getMeshPointer( dim=1, entityNum=7 )

Initiate FacetTOCellData.

  CALL obj%InitiateFacetToCellData( facetMesh=facetMesh, &
    & cellMesh=cellMesh, dim=2, entityNum=1, isMaster=.TRUE. )
  CALL obj%DisplayFacetToCellData( msg="facetToCell=" )

  CALL cellDomainFile%Deallocate()
  CALL cellDomain%Deallocate()
  CALL obj%Deallocate()
END PROGRAM main

↢

Interface2

INTERFACE
  MODULE SUBROUTINE InitiateFacetToCellData(obj, facetMesh, &
    & masterDomain, slaveDomain)
    CLASS(DomainConnectivity_), INTENT(INOUT) :: obj
    !! Mesh connectivity data
    CLASS(Mesh_), INTENT(INOUT) :: facetMesh
    !! Mesh of facet elements
    CLASS(Domain_), INTENT(INOUT) :: masterDomain
    !! Domain of master elements
    CLASS(Domain_), INTENT(INOUT) :: slaveDomain
    !! Domain of slave elements
  END SUBROUTINE InitiateFacetToCellData
END INTERFACE

This subroutine generates the faceToCell connectivity data between masterDomain, slaveDomain and faceMesh.

In this case facetMesh should a boundary of masterDomain and slaveDomain. In otherwords, facetMesh cannot represent the internal boundary. This routine calls InitiateFacetToCellData1 routine.

Interface3

INTERFACE
  MODULE SUBROUTINE dc_InitiateFacetToCellData3(obj, facetMesh, &
    & cellMesh, dim, entityNum)
    CLASS(DomainConnectivity_), INTENT(INOUT) :: obj
    !! Domain connectivity data
    CLASS(Mesh_), INTENT(INOUT) :: facetMesh
    !! Mesh of facet elements
    CLASS(Mesh_), INTENT(INOUT) :: cellMesh
    !! Master mesh
    INTEGER(I4B), INTENT(IN) :: dim
    INTEGER(I4B), INTENT(IN) :: entityNum
  END SUBROUTINE dc_InitiateFacetToCellData3
END INTERFACE

• This routine initiate facetToCell for given facetMesh and CellMesh
• In this case facetMesh can be an internal boundary of cellMesh

Interface4

܀ Interface

INTERFACE
  MODULE SUBROUTINE InitiateFacetToCellData(obj, facetMesh, cellDomain)
    CLASS(DomainConnectivity_), INTENT(INOUT) :: obj
    !! Domain connectivity data
    CLASS(Mesh_), INTENT(INOUT) :: facetMesh
    !! Mesh of facet elements
    CLASS(Domain_), INTENT(INOUT) :: cellDomain
    !! Master mesh
  END SUBROUTINE InitiateFacetToCellData
END INTERFACE

• This routine initiates facetToCell for given facetMesh and CellMesh
• In this case facetMesh can be an internal boundary of cellMesh

️܀ See example

In this example we will see how to use InitiateFacetToCellData. We use this routine to compute the facet to cell data between a cell domain and a facet mesh. The facet mesh is the internal boundary of the domain.

The Cellmesh is shown below.

Importing modules and variables

PROGRAM main
  USE easifemBase
  USE easifemClasses
  IMPLICIT NONE
  TYPE( DomainConnectivity_ ) :: obj
  TYPE( Domain_ ) :: cellDomain
  TYPE( HDF5File_ ) :: cellDomainFile
  CHARACTER( LEN=* ), PARAMETER :: cellDomainFileName="./mesh_tri3.h5"
  CLASS( Mesh_ ), POINTER :: cellMesh
  CLASS( Mesh_ ), POINTER :: facetMesh
  CLASS( ReferenceElement_ ), POINTER :: refelem
  INTEGER( I4B ) :: ii, iel

Open the mesh file for cellDomain

  CALL cellDomainFile%Initiate( FileName=cellDomainFileName, MODE="READ" )
  CALL cellDomainFile%Open()

Initiate the cellDomain

  CALL cellDomain%Initiate( cellDomainFile, "")

Make a pointer to cellMesh and facet mesh

  facetMesh => cellDomain%getMeshPointer( dim=1, entityNum=2 )

Initiate FacetTOCellData.

  CALL obj%InitiateFacetToCellData( facetMesh=facetMesh, &
    & cellDomain=cellDomain )
  CALL obj%DisplayFacetToCellData( msg="facetToCell=" )

  CALL cellDomainFile%Deallocate()
  CALL cellDomain%Deallocate()
  CALL obj%Deallocate()
END PROGRAM main

↢
