InitiateNodeToNodeData

This routine initiates nodeToNode data (mapping) between two domains or parts of domains.

Interface1

This subroutine generates the node to node connectivity between two meshes

• obj%nodeToNode will be initiated
• domain1 main domain
• domain2 secondary domain
• dim1, entitynum1 dimension and entity number of mesh in domain1
• dim2, entitynum2 dimension and entity number of mesh in domain2

caution

In this case bounds of nodeToNode will be from 1 to mesh1%maxNptrs.

INTERFACE
  MODULE SUBROUTINE dc_InitiateNodeToNodeData1(obj, domain1, domain2, &
    & dim1, dim2, entityNum1, entityNum2)
    CLASS(DomainConnectivity_), INTENT(INOUT) :: obj
    !! Domain connectivity object,
    !! [[DomainConnectivity:nodeToNode]] will be initiated
    CLASS(Domain_), INTENT(IN) :: domain1
    !! Primary domain, in nodeToNode(i), i denotes the
    !! global node number in domain1 domain.
    CLASS(Domain_), INTENT(IN) :: domain2
    !! secondary domain, => nodeToNode(i) denotes the
    !! global node number in `domain2` domain.
    INTEGER(I4B), INTENT(IN) :: dim1
    !! dimension of mesh in domain1
    INTEGER(I4B), INTENT(IN) :: dim2
    !! dimension of mesh in domain2
    INTEGER(I4B), INTENT(IN) :: entityNum1
    !! entity num of mesh in domain1
    INTEGER(I4B), INTENT(IN) :: entityNum2
    !! entity num of mesh in domain2
  END SUBROUTINE dc_InitiateNodeToNodeData1
END INTERFACE

️܀ Example 1

In this example we will generate node to node-connectivity information between part of pressure-domain and part of pressure-Domain.

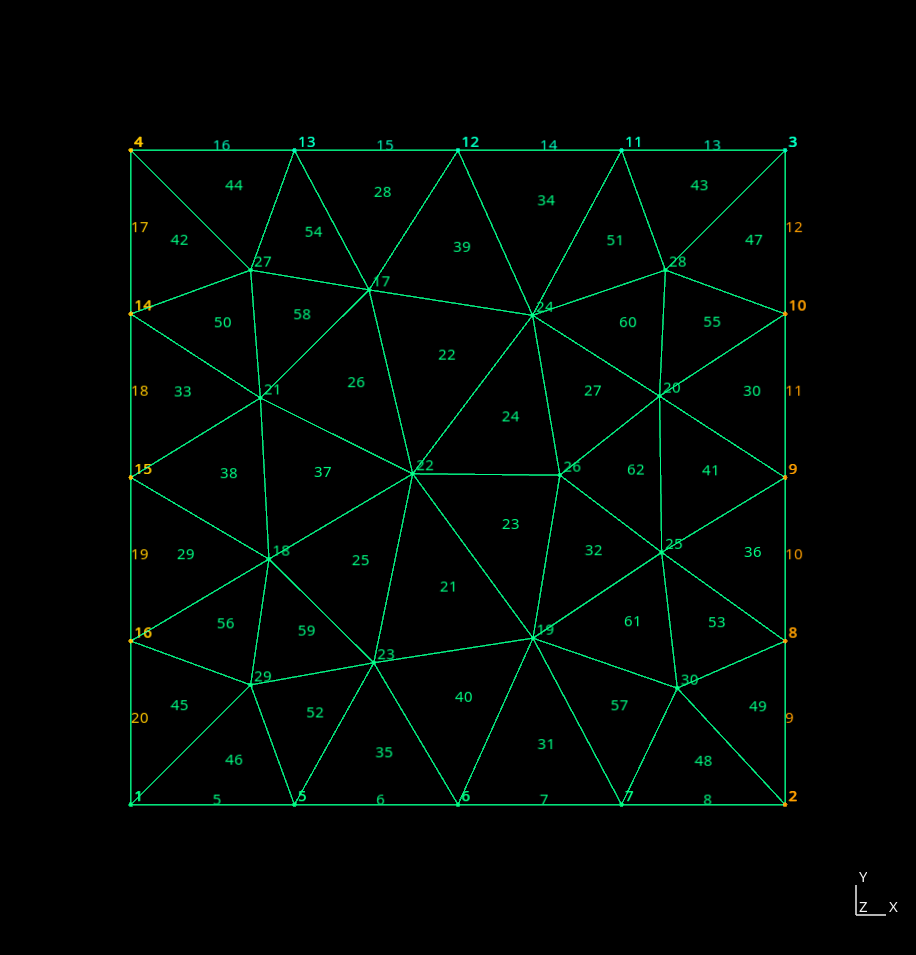

Pressure domain consists Triangle3 elements as shown below.

Importing modules and variables

PROGRAM main
  USE easifemBase
  USE easifemClasses
  IMPLICIT NONE
  TYPE(DomainConnectivity_) :: obj
  TYPE( Domain_ ) :: pressureDomain
  TYPE( HDF5File_ ) :: pressureMeshFile
  CLASS( Mesh_ ), POINTER :: pressureMesh
  INTEGER( I4B ), POINTER :: nodeToNode( : )
  REAL( DFP ), POINTER :: pressureNode( :, : )
  INTEGER( I4B ) :: ii

CALL pressureMeshFile%Initiate( FileName="./mesh_tri3.h5", MODE="READ" )
CALL pressureMeshFile%Open()
CALL pressureDomain%Initiate( pressureMeshFile, "")
CALL pressureMeshFile%Deallocate()

This will create node to node-connectivity data from domain1 (dim=2, entityNum=1) to domain2 (dim=2, entityNum=2).

CALL obj%InitiateNodeToNodeData( domain1=pressureDomain, &
  & domain2=pressureDomain, dim1=2, entityNum1=1, dim2=2, entityNum2=1)
nodeToNode => obj%getNodeToNodePointer()
pressureMesh => pressureDomain%getMeshPointer( 2, 1 )
pressureNode => pressureDomain%getNodeCoordPointer()

  DO ii = pressureMesh%minNptrs, pressureMesh%maxNptrs
    IF( .NOT. pressureMesh%isNodePresent( globalNode=ii ) ) CYCLE
    IF( ALL( pressureNode(:,pressureDomain%getLocalNodeNumber(ii)) &
      & .APPROXEQ.  &
      & pressureNode(:, &
      & pressureDomain%getLocalNodeNumber(nodeToNode(ii)))) ) THEN
      !CALL Display( "pressure Node = " // TOSTRING(ii)  &
      !  & // " matches with pressure Node = " // TOSTRING( nodeToNode(ii)))
    ELSE
      CALL Display( "ERROR: pressure Node = " // TOSTRING(ii)  &
        & // " not matches with pressure Node = "  &
        & // TOSTRING( nodeToNode(ii)))
      STOP
    END IF
  END DO

  call OK(.TRUE.)

Cleaning up.

  CALL pressureDomain%Deallocate()
  CALL obj%Deallocate()
END PROGRAM main

️܀ Example 2

In this example we will generate node to node connectivity information between part of velocity-domain and part of velocity-Domain.

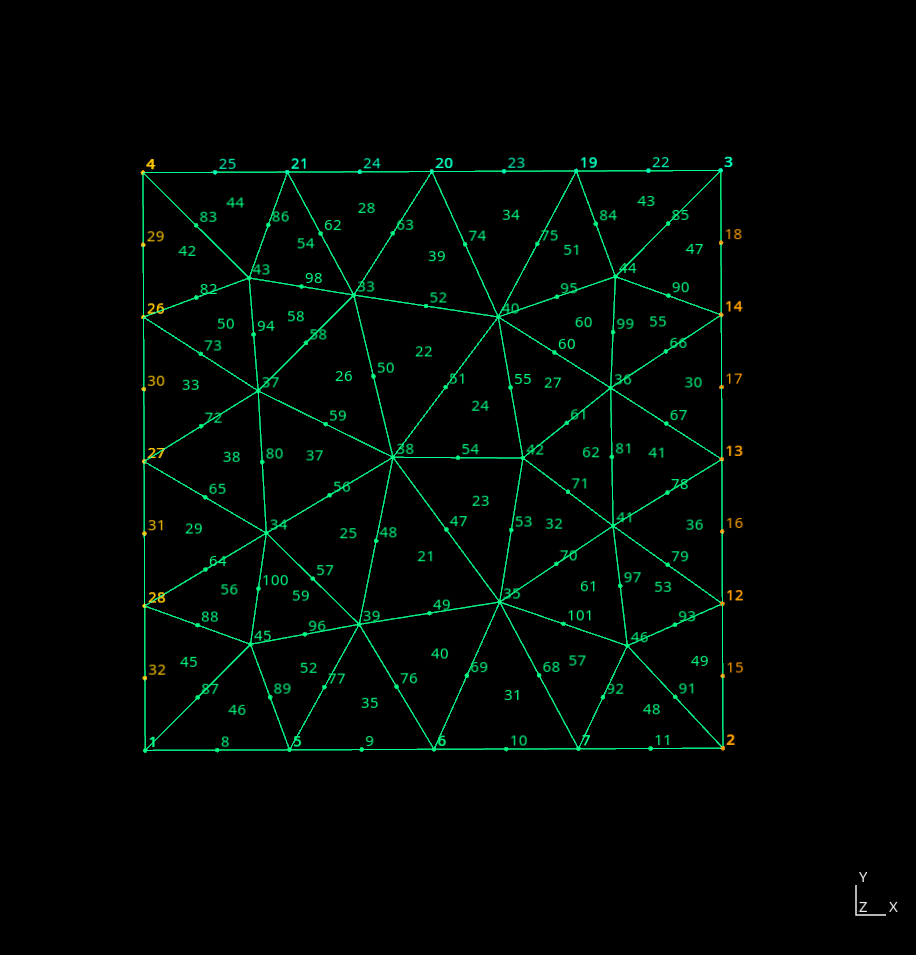

Velocity domain consists Triangle6 elements as shown below.

Import modules and define variables

PROGRAM main
  USE easifemBase
  USE easifemClasses
  IMPLICIT NONE
  TYPE(DomainConnectivity_) :: obj
  TYPE( Domain_ ) :: velocityDomain
  TYPE( HDF5File_ ) :: velocityMeshFile
  CLASS( Mesh_ ), POINTER :: velocityMesh
  INTEGER( I4B ), POINTER :: nodeToNode( : )
  REAL( DFP ), POINTER :: velocityNode( :, : )
  INTEGER( I4B ) :: ii

CALL velocityMeshFile%Initiate( FileName="./mesh_tri6.h5", MODE="READ" )
CALL velocityMeshFile%Open()
CALL velocityDomain%Initiate( velocityMeshFile, "")
CALL velocityMeshFile%Deallocate()

CALL obj%InitiateNodeToNodeData( domain1=velocityDomain, &
  & domain2=velocityDomain, dim1=2, entityNum1=1, dim2=2, entityNum2=1)
nodeToNode => obj%getNodeToNodePointer()
velocityMesh => velocityDomain%getMeshPointer( 2, 1 )
velocityNode => velocityDomain%getNodeCoordPointer()

Simple testing

DO ii = velocityMesh%minNptrs, velocityMesh%maxNptrs
  IF( .NOT. velocityMesh%isNodePresent( globalNode=ii ) ) CYCLE
  IF( nodeToNode( ii ) .EQ. 0 ) THEN
    CALL Display( "ERRRO: nodeToNode( "//TOSTRING(ii) // ") = 0 " )
    STOP
  END IF
  IF( ALL( velocityNode(:,velocityDomain%getLocalNodeNumber(ii)) &
    & .APPROXEQ.  &
    & velocityNode(:, &
    & velocityDomain%getLocalNodeNumber(nodeToNode(ii)))) ) THEN
    !CALL Display( "velocity Node = " // TOSTRING(ii)  &
    !  & // " matches with velocity Node = " // TOSTRING( nodeToNode(ii)))
  ELSE
    CALL Display( "ERROR: velocity Node = " // TOSTRING(ii)  &
      & // " not matches with velocity Node = "  &
      & // TOSTRING( nodeToNode(ii)))
    STOP
  END IF
END DO
CALL OK(.true.)

cleaning up

  CALL velocityDomain%Deallocate()
  CALL obj%Deallocate()
END PROGRAM main

️܀ Example 3

In this example we will generate node to node connectivity information between part of velocity-domain and part of pressure-Domain.

• Pressure domain consists Triangle3 elements.
• Velocity domain consists Triangle6 elements.

PROGRAM main
  USE easifemBase
  USE easifemClasses
  IMPLICIT NONE
  TYPE(DomainConnectivity_) :: obj
  TYPE( Domain_ ) :: pressureDomain
  TYPE( Domain_ ) :: velocityDomain
  TYPE( HDF5File_ ) :: pressureMeshFile
  TYPE( HDF5File_ ) :: velocityMeshFile
  CLASS( Mesh_ ), POINTER :: velocityMesh
  CLASS( Mesh_ ), POINTER :: pressureMesh
  INTEGER( I4B ), POINTER :: nodeToNode( : )
  REAL( DFP ), POINTER :: pressureNode( :, : )
  REAL( DFP ), POINTER :: velocityNode( :, : )
  INTEGER( I4B ) :: ii

CALL velocityMeshFile%Initiate( FileName="./mesh_tri6.h5", MODE="READ" )
CALL velocityMeshFile%Open()
CALL pressureMeshFile%Initiate( FileName="./mesh_tri3.h5", MODE="READ" )
CALL pressureMeshFile%Open()

CALL velocityDomain%Initiate( velocityMeshFile, "")
CALL velocityMeshFile%Deallocate()
CALL pressureDomain%Initiate( pressureMeshFile, "")
CALL pressureMeshFile%Deallocate()

CALL obj%InitiateNodeToNodeData( domain1=velocityDomain, &
   domain2=pressureDomain, dim1=2, entityNum1=1, dim2=2, entityNum2=1)
nodeToNode => obj%getNodeToNodePointer()
velocityMesh => velocityDomain%getMeshPointer( 2, 1 )
pressureMesh => pressureDomain%getMeshPointer( 2, 1 )
pressureNode => pressureDomain%getNodeCoordPointer()
velocityNode => velocityDomain%getNodeCoordPointer()

!! running some simple tests.

DO ii = velocityMesh%minNptrs, velocityMesh%maxNptrs
  IF( .NOT. velocityMesh%isNodePresent( globalNode=ii ) ) CYCLE
  IF( nodeToNode( ii ) .EQ. 0 ) CYCLE
  IF( ALL( velocityNode(:,velocityDomain%getLocalNodeNumber(ii)) &
    & .APPROXEQ. pressureNode(:, &
    & pressureDomain%getLocalNodeNumber(nodeToNode(ii)))) ) THEN
    !CALL Display( "velocity Node = " // TOSTRING(ii)  &
    !  & // " matches with pressure Node = " // TOSTRING( nodeToNode(ii)))
  ELSE
    CALL Display( "ERROR: velocity Node = " // TOSTRING(ii)  &
      & // " not matches with pressure Node = "  &
      & // TOSTRING( nodeToNode(ii)))
    STOP
  END IF
END DO
CALL OK(.true.)

  CALL pressureDomain%Deallocate()
  CALL velocityDomain%Deallocate()
  CALL obj%Deallocate()
END PROGRAM main

️܀ Example 4

In this example we will generate node to node-connectivity information between part of velocity-domain (dim=2, entity=1) and part of pressure-Domain (dim=1).

Pressure domain consists Triangle3 elements as shown below.

Velocity domain consists Triangle6 elements as shown below.

PROGRAM main
  USE easifemBase
  USE easifemClasses
  IMPLICIT NONE
  TYPE(DomainConnectivity_) :: obj
  TYPE( Domain_ ) :: pressureDomain
  TYPE( Domain_ ) :: velocityDomain
  TYPE( HDF5File_ ) :: pressureMeshFile
  TYPE( HDF5File_ ) :: velocityMeshFile
  CLASS( Mesh_ ), POINTER :: velocityMesh
  CLASS( Mesh_ ), POINTER :: pressureMesh
  INTEGER( I4B ), POINTER :: nodeToNode( : )
  REAL( DFP ), POINTER :: pressureNode( :, : )
  REAL( DFP ), POINTER :: velocityNode( :, : )
  INTEGER( I4B ), PARAMETER :: dim1=2, dim2=1, entityNum1=1, entityNum2=1
  INTEGER( I4B ) :: ii

CALL velocityMeshFile%Initiate( FileName="./mesh_tri6.h5", MODE="READ" )
CALL velocityMeshFile%Open()
CALL pressureMeshFile%Initiate( FileName="./mesh_tri3.h5", MODE="READ" )
CALL pressureMeshFile%Open()

CALL velocityDomain%Initiate( velocityMeshFile, "")
CALL velocityMeshFile%Deallocate()
CALL pressureDomain%Initiate( pressureMeshFile, "")
CALL pressureMeshFile%Deallocate()

CALL obj%InitiateNodeToNodeData( domain1=velocityDomain, &
  & domain2=pressureDomain, dim1=dim1, entityNum1=entityNum1, &
  & dim2=dim2, entityNum2=entityNum2 )
nodeToNode => obj%getNodeToNodePointer()
velocityMesh => velocityDomain%getMeshPointer( dim1, entityNum1 )
pressureMesh => pressureDomain%getMeshPointer( dim2, entityNum2 )
pressureNode => pressureDomain%getNodeCoordPointer()
velocityNode => velocityDomain%getNodeCoordPointer()

Simple testing

DO ii = velocityMesh%minNptrs, velocityMesh%maxNptrs
  IF( .NOT. velocityMesh%isNodePresent( globalNode=ii ) ) CYCLE
  IF( nodeToNode( ii ) .EQ. 0 ) CYCLE
  IF( ALL( velocityNode(:,velocityDomain%getLocalNodeNumber(ii)) &
    & .APPROXEQ. pressureNode(:, &
    & pressureDomain%getLocalNodeNumber(nodeToNode(ii)))) ) THEN
    !CALL Display( "velocity Node = " // TOSTRING(ii)  &
    !  & // " matches with pressure Node = " // TOSTRING( nodeToNode(ii)))
  ELSE
    CALL Display( "ERROR: velocity Node = " // TOSTRING(ii)  &
      & // " not matches with pressure Node = "  &
      & // TOSTRING( nodeToNode(ii)))
    STOP
  END IF
END DO
call ok(.true.)

Cleanup

  CALL pressureDomain%Deallocate()
  CALL velocityDomain%Deallocate()
  CALL obj%Deallocate()
END PROGRAM main

️܀ Example 5

In this example we will generate node to node-connectivity information between part of velocity-domain (2,1) and part of pressure-Domain (1,2).

Pressure domain consists Triangle3 elements as shown below.

Velocity domain consists Triangle6 elements as shown below.

PROGRAM main
  USE easifemBase
  USE easifemClasses
  IMPLICIT NONE
  TYPE(DomainConnectivity_) :: obj
  TYPE( Domain_ ) :: pressureDomain
  TYPE( Domain_ ) :: velocityDomain
  TYPE( HDF5File_ ) :: pressureMeshFile
  TYPE( HDF5File_ ) :: velocityMeshFile
  CLASS( Mesh_ ), POINTER :: velocityMesh
  CLASS( Mesh_ ), POINTER :: pressureMesh
  INTEGER( I4B ), POINTER :: nodeToNode( : )
  REAL( DFP ), POINTER :: pressureNode( :, : )
  REAL( DFP ), POINTER :: velocityNode( :, : )
  INTEGER( I4B ), PARAMETER :: dim1=2, entityNum1=1, dim2=1, entityNum2=2
  INTEGER( I4B ) :: ii

CALL velocityMeshFile%Initiate( FileName="./mesh_tri6.h5", MODE="READ" )
CALL velocityMeshFile%Open()
CALL pressureMeshFile%Initiate( FileName="./mesh_tri3.h5", MODE="READ" )
CALL pressureMeshFile%Open()

CALL velocityDomain%Initiate( velocityMeshFile, "")
CALL velocityMeshFile%Deallocate()
CALL pressureDomain%Initiate( pressureMeshFile, "")
CALL pressureMeshFile%Deallocate()

CALL obj%InitiateNodeToNodeData( domain1=velocityDomain, &
  & domain2=pressureDomain, dim1=dim1, entityNum1=entityNum1, &
  & dim2=dim2, entityNum2=entityNum2 )
nodeToNode => obj%getNodeToNodePointer()
velocityMesh => velocityDomain%getMeshPointer( dim1, entityNum1 )
pressureMesh => pressureDomain%getMeshPointer( dim2, entityNum2 )
pressureNode => pressureDomain%getNodeCoordPointer()
velocityNode => velocityDomain%getNodeCoordPointer()

Simple testing

DO ii = velocityMesh%minNptrs, velocityMesh%maxNptrs
  IF( .NOT. velocityMesh%isNodePresent( globalNode=ii ) ) CYCLE
  IF( nodeToNode( ii ) .EQ. 0 ) CYCLE
  IF( ALL( velocityNode(:,velocityDomain%getLocalNodeNumber(ii)) &
    & .APPROXEQ. pressureNode(:, &
    & pressureDomain%getLocalNodeNumber(nodeToNode(ii)))) ) THEN
    !CALL Display( "velocity Node = " // TOSTRING(ii)  &
    !  & // " matches with pressure Node = " // TOSTRING( nodeToNode(ii)))
  ELSE
    CALL Display( "ERROR: velocity Node = " // TOSTRING(ii)  &
      & // " not matches with pressure Node = "  &
      & // TOSTRING( nodeToNode(ii)))
    STOP
  END IF
END DO
call ok(.true.)

cleanup

  CALL pressureDomain%Deallocate()
  CALL velocityDomain%Deallocate()
  CALL obj%Deallocate()
END PROGRAM main

↢

️܀ Example 6

In this example we will generate node to node-connectivity information between part of velocity-domain (2,1) and part of pressure-Domain (1,3).

• Pressure domain consists Triangle3 elements as shown below.
• Velocity domain consists Triangle6 elements as shown below.

PROGRAM main
  USE easifemBase
  USE easifemClasses
  IMPLICIT NONE
  TYPE(DomainConnectivity_) :: obj
  TYPE( Domain_ ) :: pressureDomain
  TYPE( Domain_ ) :: velocityDomain
  TYPE( HDF5File_ ) :: pressureMeshFile
  TYPE( HDF5File_ ) :: velocityMeshFile
  CLASS( Mesh_ ), POINTER :: velocityMesh
  CLASS( Mesh_ ), POINTER :: pressureMesh
  INTEGER( I4B ), POINTER :: nodeToNode( : )
  REAL( DFP ), POINTER :: pressureNode( :, : )
  REAL( DFP ), POINTER :: velocityNode( :, : )
  INTEGER( I4B ), PARAMETER :: dim1=2, entityNum1=1, dim2=1, entityNum2=3
  INTEGER( I4B ) :: ii

CALL velocityMeshFile%Initiate( FileName="./mesh_tri6.h5", MODE="READ" )
CALL velocityMeshFile%Open()
CALL pressureMeshFile%Initiate( FileName="./mesh_tri3.h5", MODE="READ" )
CALL pressureMeshFile%Open()

CALL velocityDomain%Initiate( velocityMeshFile, "")
CALL velocityMeshFile%Deallocate()
CALL pressureDomain%Initiate( pressureMeshFile, "")
CALL pressureMeshFile%Deallocate()

CALL obj%InitiateNodeToNodeData( domain1=velocityDomain, &
  & domain2=pressureDomain, dim1=dim1, entityNum1=entityNum1, &
  & dim2=dim2, entityNum2=entityNum2 )
nodeToNode => obj%getNodeToNodePointer()
velocityMesh => velocityDomain%getMeshPointer( dim1, entityNum1 )
pressureMesh => pressureDomain%getMeshPointer( dim2, entityNum2 )
pressureNode => pressureDomain%getNodeCoordPointer()
velocityNode => velocityDomain%getNodeCoordPointer()

Simple testing

DO ii = velocityMesh%minNptrs, velocityMesh%maxNptrs
  IF( .NOT. velocityMesh%isNodePresent( globalNode=ii ) ) CYCLE
  IF( nodeToNode( ii ) .EQ. 0 ) CYCLE
  IF( ALL( velocityNode(:,velocityDomain%getLocalNodeNumber(ii)) &
    & .APPROXEQ. pressureNode(:, &
    & pressureDomain%getLocalNodeNumber(nodeToNode(ii)))) ) THEN
    !CALL Display( "velocity Node = " // TOSTRING(ii)  &
    !  & // " matches with pressure Node = " // TOSTRING( nodeToNode(ii)))
  ELSE
    CALL Display( "ERROR: velocity Node = " // TOSTRING(ii)  &
      & // " not matches with pressure Node = "  &
      & // TOSTRING( nodeToNode(ii)))
    STOP
  END IF
END DO
call ok(.true.)

clean up

  CALL pressureDomain%Deallocate()
  CALL velocityDomain%Deallocate()
  CALL obj%Deallocate()
END PROGRAM main

️܀ Example 7

In this example we will generate node to node connectivity information between part of velocity-domain (2,1) and part of pressure-Domain (1,4).

• Pressure domain consists Triangle3 elements as shown below.
• Velocity domain consists Triangle6 elements as shown below.

PROGRAM main
  USE easifemBase
  USE easifemClasses
  IMPLICIT NONE
  TYPE(DomainConnectivity_) :: obj
  TYPE( Domain_ ) :: pressureDomain
  TYPE( Domain_ ) :: velocityDomain
  TYPE( HDF5File_ ) :: pressureMeshFile
  TYPE( HDF5File_ ) :: velocityMeshFile
  CLASS( Mesh_ ), POINTER :: velocityMesh
  CLASS( Mesh_ ), POINTER :: pressureMesh
  INTEGER( I4B ), POINTER :: nodeToNode( : )
  REAL( DFP ), POINTER :: pressureNode( :, : )
  REAL( DFP ), POINTER :: velocityNode( :, : )
  INTEGER( I4B ), PARAMETER :: dim1=2, entityNum1=1, dim2=1, entityNum2=4
  INTEGER( I4B ) :: ii

CALL velocityMeshFile%Initiate( FileName="./mesh_tri6.h5", MODE="READ" )
CALL velocityMeshFile%Open()
CALL pressureMeshFile%Initiate( FileName="./mesh_tri3.h5", MODE="READ" )
CALL pressureMeshFile%Open()

CALL velocityDomain%Initiate( velocityMeshFile, "")
CALL velocityMeshFile%Deallocate()
CALL pressureDomain%Initiate( pressureMeshFile, "")
CALL pressureMeshFile%Deallocate()

CALL obj%InitiateNodeToNodeData( domain1=velocityDomain, &
  & domain2=pressureDomain, dim1=dim1, entityNum1=entityNum1, &
  & dim2=dim2, entityNum2=entityNum2 )
nodeToNode => obj%getNodeToNodePointer()
velocityMesh => velocityDomain%getMeshPointer( dim1, entityNum1 )
pressureMesh => pressureDomain%getMeshPointer( dim2, entityNum2 )
pressureNode => pressureDomain%getNodeCoordPointer()
velocityNode => velocityDomain%getNodeCoordPointer()

Simple testing

DO ii = velocityMesh%minNptrs, velocityMesh%maxNptrs
  IF( .NOT. velocityMesh%isNodePresent( globalNode=ii ) ) CYCLE
  IF( nodeToNode( ii ) .EQ. 0 ) CYCLE
  IF( ALL( velocityNode(:,velocityDomain%getLocalNodeNumber(ii)) &
    & .APPROXEQ. pressureNode(:, &
    & pressureDomain%getLocalNodeNumber(nodeToNode(ii)))) ) THEN
    CALL Display( "velocity Node = " // TOSTRING(ii)  &
      & // " matches with pressure Node = " // TOSTRING( nodeToNode(ii)))
  ELSE
    CALL Display( "ERROR: velocity Node = " // TOSTRING(ii)  &
      & // " not matches with pressure Node = "  &
      & // TOSTRING( nodeToNode(ii)))
    STOP
  END IF
END DO

cleanup

  CALL pressureDomain%Deallocate()
  CALL velocityDomain%Deallocate()
  CALL obj%Deallocate()
END PROGRAM main

️܀ Example 8

In this example we will generate node to node connectivity information between part of velocity-domain (2,1) and part of pressure-Domain (2,1).

• Pressure domain consists Triangle3 elements as shown below.
• Velocity domain consists Triangle6 elements as shown below.

PROGRAM main
  USE easifemBase
  USE easifemClasses
  IMPLICIT NONE
  TYPE(DomainConnectivity_) :: obj
  TYPE( Domain_ ) :: pressureDomain
  TYPE( Domain_ ) :: velocityDomain
  TYPE( HDF5File_ ) :: pressureMeshFile
  TYPE( HDF5File_ ) :: velocityMeshFile
  CLASS( Mesh_ ), POINTER :: velocityMesh
  CLASS( Mesh_ ), POINTER :: pressureMesh
  INTEGER( I4B ), POINTER :: nodeToNode( : )
  REAL( DFP ), POINTER :: pressureNode( :, : )
  REAL( DFP ), POINTER :: velocityNode( :, : )
  INTEGER( I4B ), PARAMETER :: dim1=2, entityNum1=1, dim2=2, entityNum2=1
  INTEGER( I4B ) :: ii

CALL velocityMeshFile%Initiate( FileName="./mesh_tri6.h5", MODE="READ" )
CALL velocityMeshFile%Open()
CALL pressureMeshFile%Initiate( FileName="./mesh_tri3.h5", MODE="READ" )
CALL pressureMeshFile%Open()

CALL velocityDomain%Initiate( velocityMeshFile, "")
CALL velocityMeshFile%Deallocate()
CALL pressureDomain%Initiate( pressureMeshFile, "")
CALL pressureMeshFile%Deallocate()

CALL obj%InitiateNodeToNodeData( domain2=velocityDomain, &
  & domain1=pressureDomain, dim1=dim1, entityNum1=entityNum1, &
  & dim2=dim2, entityNum2=entityNum2 )
nodeToNode => obj%getNodeToNodePointer()
velocityMesh => velocityDomain%getMeshPointer( dim1, entityNum1 )
pressureMesh => pressureDomain%getMeshPointer( dim2, entityNum2 )
pressureNode => pressureDomain%getNodeCoordPointer()
velocityNode => velocityDomain%getNodeCoordPointer()

Simple testing

DO ii = pressureMesh%minNptrs, pressureMesh%maxNptrs
  IF( .NOT. pressureMesh%isNodePresent( globalNode=ii ) ) CYCLE
  IF( nodeToNode( ii ) .EQ. 0 ) CYCLE
  IF( ALL( pressureNode(:,pressureDomain%getLocalNodeNumber(ii)) &
    & .APPROXEQ. velocityNode(:, &
    & velocityDomain%getLocalNodeNumber(nodeToNode(ii)))) ) THEN
    CALL Display( "pressure Node = " // TOSTRING(ii)  &
      & // " matches with velocity Node = " // TOSTRING( nodeToNode(ii)))
  ELSE
    CALL Display( "ERROR: pressure Node = " // TOSTRING(ii)  &
      & // " not matches with velocity Node = "  &
      & // TOSTRING( nodeToNode(ii)))
    STOP
  END IF
END DO

Cleanup

  CALL pressureDomain%Deallocate()
  CALL velocityDomain%Deallocate()
  CALL obj%Deallocate()
END PROGRAM main

↢

Interface2

INTERFACE
  MODULE SUBROUTINE dc_InitiateNodeToNodeData2(obj, domain1, domain2)
    CLASS(DomainConnectivity_), INTENT(INOUT) :: obj
    !! Domain connectivity object
    CLASS(Domain_), INTENT(IN) :: domain1
    !! Primary domain, in nodeToNode(i), i denotes the
    !! global node number in domain1 domain.
    CLASS(Domain_), INTENT(IN) :: domain2
    !! Secondary domain => nodeToNode(i) denotes the
    !! global node number in domain2 domain.
  END SUBROUTINE dc_InitiateNodeToNodeData2
END INTERFACE
!# Introduction
!
!  This subroutine generates the node to node connectivity between two domains
!
!@note
!In this routine nodeToNode connectivity info of all meshes in domain1 to
!all meshes in the domain2 will be generated!
!@endnote
!
! - `obj%nodeToNode` will be initiated
! - `domain1` main domain
! - `domain2` secondary domain

️܀ Example 1

In this example we will generate node to node connectivity information between velocity-domain and pressure-Domain.

• Pressure domain consists Triangle3 elements as shown below.
• Velocity domain consists Triangle6 elements as shown below.

PROGRAM main
  USE easifemBase
  USE easifemClasses
  IMPLICIT NONE
  TYPE(DomainConnectivity_) :: obj
  TYPE( Domain_ ) :: pressureDomain
  TYPE( Domain_ ) :: velocityDomain
  TYPE( HDF5File_ ) :: pressureMeshFile
  TYPE( HDF5File_ ) :: velocityMeshFile
  INTEGER( I4B ), POINTER :: nodeToNode( : )
  REAL( DFP ), POINTER :: pressureNode( :, : )
  REAL( DFP ), POINTER :: velocityNode( :, : )
  INTEGER( I4B ) :: ii

CALL velocityMeshFile%Initiate( FileName="./mesh_tri6.h5", MODE="READ" )
CALL velocityMeshFile%Open()
CALL pressureMeshFile%Initiate( FileName="./mesh_tri3.h5", MODE="READ" )
CALL pressureMeshFile%Open()

CALL velocityDomain%Initiate( velocityMeshFile, "")
CALL velocityMeshFile%Deallocate()
CALL pressureDomain%Initiate( pressureMeshFile, "")
CALL pressureMeshFile%Deallocate()

CALL obj%InitiateNodeToNodeData( domain1=velocityDomain, &
  & domain2=pressureDomain )
nodeToNode => obj%getNodeToNodePointer()
pressureNode => pressureDomain%getNodeCoordPointer()
velocityNode => velocityDomain%getNodeCoordPointer()

Simple testing

DO ii = velocityDomain%minNptrs, velocityDomain%maxNptrs
  IF( .NOT. velocityDomain%isNodePresent( globalNode=ii ) ) CYCLE
  IF( nodeToNode( ii ) .EQ. 0 ) CYCLE
  IF( ALL( velocityNode(:,velocityDomain%getLocalNodeNumber(ii)) &
    & .APPROXEQ. pressureNode(:, &
    & pressureDomain%getLocalNodeNumber(nodeToNode(ii)))) ) THEN
    CALL Display( "velocity Node = " // TOSTRING(ii)  &
      & // " matches with pressure Node = " // TOSTRING( nodeToNode(ii)))
  ELSE
    CALL Display( "ERROR: velocity Node = " // TOSTRING(ii)  &
      & // " not matches with pressure Node = "  &
      & // TOSTRING( nodeToNode(ii)))
    STOP
  END IF
END DO

cleanup

  CALL pressureDomain%Deallocate()
  CALL velocityDomain%Deallocate()
  CALL obj%Deallocate()
END PROGRAM main

️܀ Example 2

In this example we will generate node to node connectivity information between velocity-domain and pressure-domain.

• Pressure domain consists Triangle3 elements as shown below.
• Velocity domain consists Triangle6 elements as shown below.

PROGRAM main
  USE easifemBase
  USE easifemClasses
  IMPLICIT NONE
  TYPE(DomainConnectivity_) :: obj
  TYPE( Domain_ ) :: pressureDomain
  TYPE( Domain_ ) :: velocityDomain
  TYPE( HDF5File_ ) :: pressureMeshFile
  TYPE( HDF5File_ ) :: velocityMeshFile
  INTEGER( I4B ), POINTER :: nodeToNode( : )
  REAL( DFP ), POINTER :: pressureNode( :, : )
  REAL( DFP ), POINTER :: velocityNode( :, : )
  INTEGER( I4B ) :: ii

CALL velocityMeshFile%Initiate( FileName="./mesh_tri6.h5", MODE="READ" )
CALL velocityMeshFile%Open()
CALL pressureMeshFile%Initiate( FileName="./mesh_tri3.h5", MODE="READ" )
CALL pressureMeshFile%Open()

CALL velocityDomain%Initiate( velocityMeshFile, "")
CALL velocityMeshFile%Deallocate()
CALL pressureDomain%Initiate( pressureMeshFile, "")
CALL pressureMeshFile%Deallocate()

CALL obj%InitiateNodeToNodeData( domain2=velocityDomain, &
  & domain1=pressureDomain )
nodeToNode => obj%getNodeToNodePointer()
pressureNode => pressureDomain%getNodeCoordPointer()
velocityNode => velocityDomain%getNodeCoordPointer()

Simple testing

DO ii = pressureDomain%minNptrs, pressureDomain%maxNptrs
  IF( .NOT. pressureDomain%isNodePresent( globalNode=ii ) ) CYCLE
  IF( nodeToNode( ii ) .EQ. 0 ) CYCLE
  IF( ALL( pressureNode(:,pressureDomain%getLocalNodeNumber(ii)) &
    & .APPROXEQ. velocityNode(:, &
    & velocityDomain%getLocalNodeNumber(nodeToNode(ii)))) ) THEN
    !CALL Display( "pressure Node = " // TOSTRING(ii)  &
    !  & // " matches with velocity Node = " // TOSTRING( nodeToNode(ii)))
  ELSE
    CALL Display( "ERROR: pressure Node = " // TOSTRING(ii)  &
      & // " not matches with velocity Node = "  &
      & // TOSTRING( nodeToNode(ii)))
    STOP
  END IF
END DO
CALL OK(.TRUE.)

cleanup

  CALL pressureDomain%Deallocate()
  CALL velocityDomain%Deallocate()
  CALL obj%Deallocate()
END PROGRAM main

↢

This is a powerful 🔥 and useful method. You can learn about this routine at following links.
