CheckEssentialParam

Check essential parameter.

Interface

܀ Interface

INTERFACE
  MODULE SUBROUTINE CheckEssentialParam(obj, param, prefix)
    CLASS(SteadyStokes221_), INTENT(INOUT) :: obj
    TYPE(ParameterList_), INTENT(IN) :: param
    CHARACTER(*), OPTIONAL, INTENT(IN) :: prefix
  END SUBROUTINE CheckEssentialParam
END INTERFACE

️܀ See example

This example shows how to set the parameters for steady stokes flow kernel SteadyStokes221.

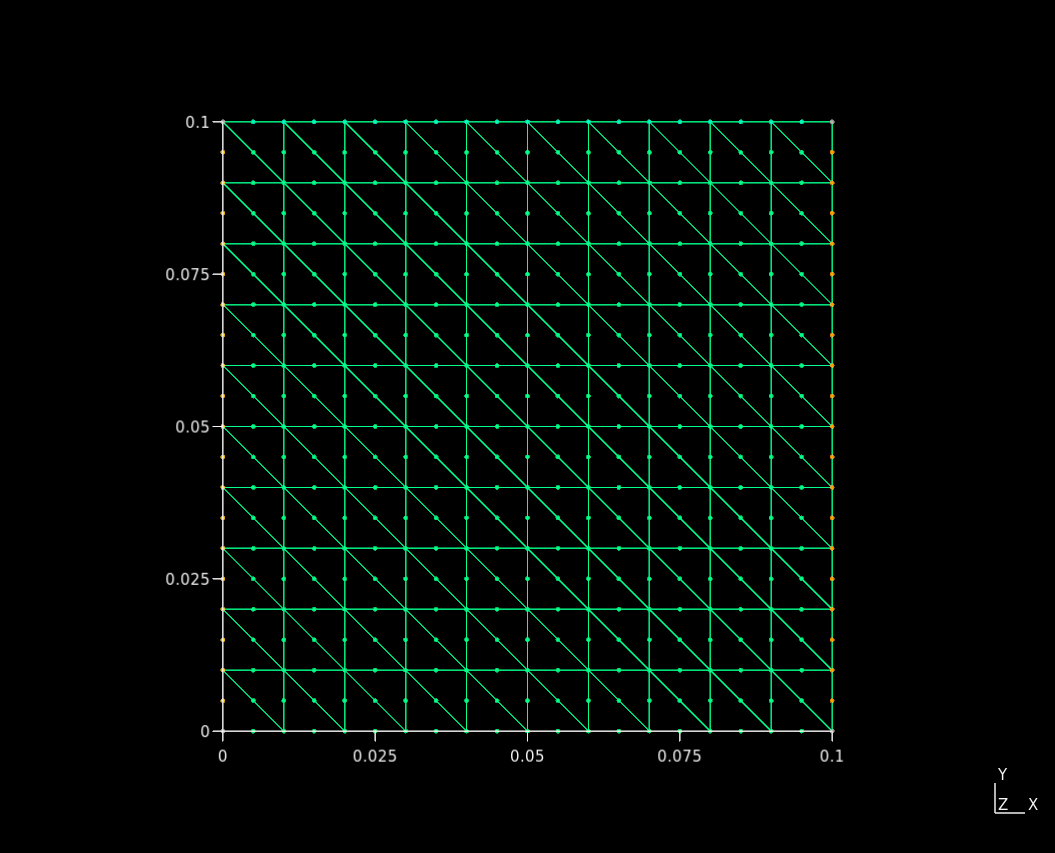

܀ Mesh for velocity

܀ Mesh for pressure

↢

Use modules

PROGRAM main
  USE easifemBase
  USE easifemClasses
  USE easifemMaterials
  USE easifemKernels
  USE SteadyStokes221_Class
  IMPLICIT NONE

Declare variables

  TYPE( SteadyStokes221_ ) :: obj
  TYPE( ParameterList_ ) :: param
  CHARACTER( LEN = * ), PARAMETER :: domainFileForPressure="./mesh_tri3.h5"
  CHARACTER( LEN = * ), PARAMETER :: domainFileForVelocity="./mesh_tri6.h5"

Set parameters

Set parameters for kernel.

Initiate the parameter list to store the parameters of the kernel

  CALL FPL_INIT(); CALL param%Initiate()

We set the parameters for SteadyStokes221_ kernel.

  CALL SetSteadyStokes221Param( &
    & param=param, &
    & isConservativeForm=.TRUE., &
    & gravity = [0.0_DFP, -9.8_DFP, 0.0_DFP], &
    & domainFileForPressure = domainFileForPressure, &
    & domainFileForVelocity = domainFileForVelocity, &
    & engine="NATIVE_SERIAL", &
    & CoordinateSystem=KERNEL_CARTESIAN, &
    & maxIter = 100, &
    & rtoleranceForPressure = REAL( 1.0E-6, DFP ), &
    & rtoleranceForVelocity = REAL( 1.0E-6, DFP ), &
    & atoleranceForPressure = REAL( 1.0E-6, DFP ), &
    & atoleranceForVelocity = REAL( 1.0E-6, DFP ), &
    & toleranceForSteadyState = REAL( 1.0E-6, DFP ), &
    & tFluidMaterials=1, &
    & tDirichletBCForPressure=0, &
    & tDirichletBCForVelocity=3, &
    & baseInterpolationForSpace="LagrangeInterpolation", &
    & baseContinuityForSpace="H1", &
    & quadratureTypeForSpace="GaussLegendre", &
    & postProcessOpt=1)

Let us print the parameter list.

    CALL param%Print()

Let us check the essential parameter.

  CALL obj%CheckEssentialParam( param )

  CALL param%Deallocate(); CALL FPL_FINALIZE()
END PROGRAM main

↢
