STDBE511 example 5

Both fluid and porous medium are considered
L = 0.1 m
dx = 0.1/50
K0 = E-10 m2
Da = E-8
V_TOP = 0.01
dt = dx / V_TOP = 0.2
StabOption=1

Mesh:

[TOC]

!!! note "Some simulation parameter"

#define _K0_ 1.0E-10
#define _PHI_ 0.5_DFP
#define _DT_ 0.2
#define _VTOP_ 0.01_DFP
#define _MU_FLUID_ 0.001
#define _RHO_FLUID_ 1000.0
#define _TIMESTEPS_ 100 ! maxI4B
#define _MAX_ITER_ 20
#define _tDBC4P_ 0
#define _REF_PRESSURE_NODE_ 90
#define _STAB_PARAM_OPTION_ 1
#define _MATERTIAL_INTERFACES_ [7]
#define _SAVE_STATE_FREQ_ 100
#define _WRITE_FREQ_ 1

varName	Comment
`_K0_`	permeability of the soil
`_PHI_`	porosity of the soil
`_DT_`	time step size
`_VTOP_`	velocity at top
`_MU_FLUID_`	dynamic viscosity of fluid
`_RHO_FLUID_`	mass-density of fluid
`_TIMESTEPS_`	number of time steps
`_MAX_ITER_`	maximum number of Newton iteration
`_tDBC4P_`	total Dirichlet BC for pressure
`_REF_PRESSURE_NODE_`	reference node number for pressure
`_STAB_PARAM_OPTION_`	stabilization option
`_MATERTIAL_INTERFACES_`	mesh-id of fluid-soil interfaces
`_SAVE_STATE_FREQ_`	save-state frequency
`_WRITE_FREQ_`	write-frequency

!!! note "Include modules"

PROGRAM main
  USE easifemBase
  USE easifemClasses
  USE easifemMaterials
  USE easifemKernels
  USE STDBE511_Class
  IMPLICIT NONE

Declare variables

  TYPE(STDBE511_) :: obj
  TYPE(ParameterList_) :: param
  TYPE(HDF5File_) :: domainFile
  TYPE( HDF5File_ ) :: outfile
  TYPE( HDF5File_ ) :: statefile
  TYPE(MeshSelection_) :: region
  TYPE(Domain_), TARGET :: dom
  CLASS(DirichletBC_), POINTER :: dbc => NULL()
  CHARACTER(LEN=*), PARAMETER :: &
    & domainFileName = "./mesh.h5"
  CHARACTER( LEN = * ), PARAMETER :: &
    & outfilePrefix="./output"
  CHARACTER( LEN = * ), PARAMETER :: &
    & statePrefix="./state"
  INTEGER( I4B ), PARAMETER :: CoordinateSystem = KERNEL_2D
  INTEGER( I4B ), PARAMETER :: SaveStateFrequency = _SAVE_STATE_FREQ_
  INTEGER( I4B ), PARAMETER :: writeFrequency = _WRITE_FREQ_
  INTEGER( I4B ) :: backupNumber

var-name	comment
`obj`	Instance of [[STDBE511_]] kernel
`param`	parameters instance of [[ParameterList_]]
`domainFile`	domain file [[HDF5File_]]
`outfile`	output file [[HDF5File_]]
`statefile`	state file [[HDF5File_]]
`region`	mesh region [[MeshSelection_]]
`dom`	domain [[Domain_]]
`dbc`	instance of dirichlet boundary condition [[NeumannBC_]]
`domainFileName`	domain file name
`outfilePrefix`	output file prefix
`statePrefix`	state file prefix
`coordinateSystem`	coordinate system
`saveStateFrequency`	saving frequency for state files
`writeFrequency`	write frequency for output files
`backupNumber`	interal variable

!!! note "Linear solver parameters"

  INTEGER(I4B), PARAMETER :: LinSolver_name = LIS_GMRES
  INTEGER(I4B), PARAMETER :: KrylovSubspaceSize = 50
  INTEGER(I4B), PARAMETER :: maxIter_LinSolver = -1
  REAL(DFP), PARAMETER :: rtol_LinSolver=1.0D-6
  REAL(DFP), PARAMETER :: atol_LinSolver=1.0D-10
  INTEGER(I4B), PARAMETER :: preconditionOption = NO_PRECONDITION
  INTEGER(I4B), PARAMETER :: convergenceIn_LinSolver = convergenceInRes
  INTEGER(I4B), PARAMETER :: convergenceType_LinSolver = relativeConvergence
  LOGICAL( LGT ), PARAMETER :: relativeToRHS = .FALSE.

var-name	comment
`LinSolver_name`	name of linear solver
`KrylovSubspaceSize`	a parameter for linsol
`maxIter_LinSolver`	max number of iterations in linsol
`rtol_LinSolver`	relative tolerance for linsol
`atol_LinSolver`	absolute tolerance for linsol
`preconditionOption`	precondition option
`convergenceIn_LinSolver`	convergence criteria for linsol
`convergenceType_LinSolver`	convergence criteria for linsol: relative or absolute.
`relativeToRHS`	if convergence is relative then relative to RHS or not.

Currently, NO_PRECONDITON means diagonal preconditioning will be selected.

!!! note "Iteration parameters"

  INTEGER(I4B), PARAMETER :: nnt = 2
  INTEGER( I4B ), PARAMETER :: stabParamOption = _STAB_PARAM_OPTION_
  INTEGER( I4B ), PARAMETER :: maxIter= _MAX_ITER_
  INTEGER(I4B), PARAMETER :: TotalTimeSteps = _TIMESTEPS_
  REAL(DFP), PARAMETER :: startTime=0.0_DFP
  REAL(DFP), PARAMETER :: dt= _DT_
  REAL(DFP), PARAMETER :: endTime=dt*TotalTimeSteps
  REAL( DFP ), PARAMETER :: atol_Pressure=1.0D-10
  REAL( DFP ), PARAMETER :: rtol_Pressure=1.0D-10
  REAL( DFP ), PARAMETER :: atol_Velocity=1.0D-6
  REAL( DFP ), PARAMETER :: rtol_Velocity=1.0D-6
  REAL( DFP ), PARAMETER :: tol_steadyState = 1.0E-8
  LOGICAL( LGT ), PARAMETER :: resetIteration = .FALSE.
  LOGICAL( LGT ), PARAMETER :: resetTimeStep = .FALSE.

var-name	comment
`nnt`	number of nodes in time
`stabParamOption`	stabilization parameter option
`maxIter`	maximum number of iteration
`TotalTimeSteps`	total number of time steps for the simulation
`startTime`	start time of simulation
`dt`	time step size of simulation
`endTime`	end time of simulation
`atol_Pressure`	absolute tolerance for checking convergence in pressure
`rtol_Pressure`	relative tolerance for checking convergence in pressure
`atol_Velocity`	absolute tolerance for checking convergence in velocity
`rtol_Velocity`	relative tolerance for checking convergence in velocity
`tol_steadyState`	tolerance for checking steady state
`resetIteration`	reset variables to zero after each iteration
`resetTimeStep`	reset variables to zero after each time step

!!! note "Materials and boundary conditions"

  INTEGER(I4B), PARAMETER :: tPorousMaterials = 2
  INTEGER(I4B), PARAMETER :: tFluidMaterials = 1
  INTEGER(I4B), PARAMETER :: tDirichletBCForVelocity = 3
  INTEGER(I4B), PARAMETER :: tDirichletBCForPressure = _tDBC4P_
  INTEGER( I4B ), PARAMETER :: refPressureNode = _REF_PRESSURE_NODE_
  INTEGER( I4B ), PARAMETER :: materialInterfaces(1) = _MATERTIAL_INTERFACES_
  REAL(DFP), PARAMETER :: porosity= _PHI_
  REAL(DFP), PARAMETER :: porosity_fluid=1.0_DFP
  REAL(DFP), PARAMETER :: permeability = _K0_
  REAL(DFP), PARAMETER :: permeability_fluid=1.0E+30
  REAL(DFP), PARAMETER :: massdensity_soil=1700.0
  REAL(DFP), PARAMETER :: massdensity_fluid = _RHO_FLUID_
  REAL(DFP), PARAMETER :: dynamicViscosity = _MU_FLUID_
  REAL(DFP), PARAMETER :: V_TOP= _VTOP_

var-name	comment
`tPorousMaterials`	total porous media
`tFluidMaterials`	total fluid material
`tDirichletBCForVelocity`	total dirichlet boundary condition for velocity
`tDirichletBCForPressure`	total dirichlet boundary condition for pressure
`refPressureNode`	reference node number for pressure
`porosity`	porosity of soil
`massdensity_soil`	mass density of soil
`permeability`	permeability of soil
`massdensity_fluid`	mass density of fluid
`dynamicViscosity`	dynamic viscosity of fluid
`V_TOP`	velocity at the top

!!! note "Internal variables"

  LOGICAL( LGT ) :: convg
  INTEGER( I4B ) :: iter
  INTEGER( I4B ) :: its
  REAL( DFP ) :: t1, t2, t2t1

SetSTDBE511Param

[[STDBE511_#SetSTDBE511Param]]

  CALL FPL_INIT(); CALL param%Initiate()
  !!
  CALL SetSTDBE511Param( &
    & param=param, &
    & materialInterfaces=materialInterfaces, &
    & stabParamOption=stabParamOption, &
    & engine="NATIVE_SERIAL", &
    & nnt=nnt, &
    & startTime=startTime, &
    & endTime=endTime, &
    & dt=dt, &
    & coordinateSystem=coordinateSystem, &
    & maxIter=maxIter, &
    & atoleranceForPressure=atol_pressure, &
    & atoleranceForVelocity=atol_velocity, &
    & rtoleranceForPressure=rtol_pressure, &
    & rtoleranceForVelocity=rtol_velocity, &
    & toleranceForSteadyState=tol_steadyState, &
    & tPorousMaterials=tPorousMaterials, &
    & tFluidMaterials=tFluidMaterials, &
    & tDirichletBCForVelocity=tDirichletBCForVelocity, &
    & tDirichletBCForPressure=tDirichletBCForPressure, &
    & domainFile=domainFileName)

SetLinSolverParam

  CALL SetLinSolverParam( &
    & param=param, &
    & solverName=LinSolver_name,&
    & preconditionOption=preconditionOption, &
    & convergenceIn=convergenceIn_LinSolver, &
    & convergenceType=convergenceType_LinSolver, &
    & maxIter=maxIter_LinSolver, &
    & relativeToRHS=relativeToRHS, &
    & KrylovSubspaceSize=KrylovSubspaceSize, &
    & rtol=rtol_LinSolver, &
    & atol=atol_LinSolver )

Domain Initiate

Domain for pressure and velocity field

  CALL domainFile%Initiate( filename=domainFileName, MODE="READ")
  CALL domainFile%Open()
  CALL dom%Initiate(domainFile, "")
  CALL domainFile%Deallocate()

Initiate

Initiate the STDBE511 kernel [[STDBE511_#Initiate]]

  CALL obj%Initiate(param=param, dom=dom)

AddPorousMaterial

Add Porous Material (bottom region)

[[MeshSelection_#Initiate]]
[[MeshSelection_#Add]]
[[MeshSelection_#SetPorousMaterialParam]]

  CALL region%Initiate(isSelectionByMeshID=.TRUE.)
  CALL region%Add(dim=obj%nsd, meshID=[1])
  CALL region%Add(dim=obj%nsd-1, meshID=materialInterfaces )

  CALL SetPorousMaterialParam( &
    & param=param, &
    & name="porousMaterial", &
    & massdensity=massdensity_soil, &
    & porosity=porosity, &
    & permeability=permeability )

[[STDBE511_#AddPorousMaterial]]

  CALL obj%AddPorousMaterial( &
    & materialNo=1, &
    & materialName="porousMaterial", &
    & param=param, &
    & region=region)

Deallocate the region, so that we can use it again.

  CALL region%Deallocate()

Adding another porous medium (top part)

Initiate region:

  CALL region%Initiate(isSelectionByMeshID=.TRUE.)
  CALL region%Add(dim=obj%nsd, meshID=[2])

Set porous material properties.

  CALL SetPorousMaterialParam( &
    & param=param, &
    & name="porousMaterial", &
    & massdensity=massdensity_fluid, &
    & porosity=porosity_fluid, &
    & permeability=permeability_fluid )

Add porous material to kernel, and deallocate the region.

  CALL obj%AddPorousMaterial( &
    & materialNo=2, &
    & materialName="porousMaterial", &
    & param=param, &
    & region=region)
  !!
  CALL region%Deallocate()

AddFluidMaterial

[[STDBE511_#AddFluidMaterial]]

  CALL region%Initiate(isSelectionByMeshID=.TRUE.)
  CALL region%Add(dim=obj%nsd, meshID=[1,2])
  CALL region%Add(dim=obj%nsd-1, meshID=materialInterfaces )
  !!
  CALL SetFluidMaterialParam( &
    & param=param, &
    & name="fluidMaterial", &
    & massDensity=massdensity_fluid, &
    & dynamicViscosity=dynamicViscosity )
  !!
  CALL obj%AddFluidMaterial( &
    & materialNo=1, &
    & materialName="fluidMaterial", &
    & param=param, &
    & region=region )
  !!
  CALL region%Deallocate()
  !!

DirichletBoundaryCondition

In this problem we only have dirichlet boundary condition for velocity. At all boundary we have dirichlet boundary condition.

Vx=0

Select the mesh boundary where $v_{x}=0$ is prescribed.

[[MeshSelection_#Initiate]]
[[MeshSelection_#Add]]
[[MeshSelection_#Set]]

  CALL region%Initiate( &
    & isSelectionByMeshID=.TRUE., &
    & isSelectionByNodeNum=.TRUE. )
  CALL region%Add(dim=obj%nsd-1, meshID=[1,2,6])
  CALL region%Add( &
    & nodenum=dom%getInternalNptrs( dim=obj%nsd-1, entityNum=[3,5] ) )
  CALL region%Set()

Set the parameters for dirichlet boundary condition. [[NeumannBC_#SetDirichletBCParam]]

  CALL SetDirichletBCParam( &
    & param=param, &
    & name="Vx=0", &
    & idof=1, &
    & nodalValueType=Constant, &
    & useFunction=.FALSE.)

Add dirichlet boundary condition to kernel [[STDBE511_#AddVelocityDirichletBC]], [[STDBE511_#GetVelocityDirichletBCPointer]]

  CALL obj%AddVelocityDirichletBC(dbcNo=1, param=param, boundary=region)
  dbc => obj%GetVelocityDirichletBCPointer(dbcNo=1)
  CALL dbc%Set(ConstantNodalValue=0.0_DFP)
  dbc => NULL()
  CALL region%Deallocate()

Vy=0

  CALL SetDirichletBCParam( &
    & param=param, &
    & name="Vy=0", &
    & idof=2, &
    & nodalValueType=Constant, &
    & useFunction=.FALSE.)

  CALL region%Initiate(isSelectionByMeshID=.TRUE.)
  CALL region%Add(dim=obj%nsd-1, meshID=[1,2,3,4,5,6])
  CALL region%Set()

  CALL obj%AddVelocityDirichletBC(dbcNo=2, param=param, boundary=region)
  dbc => obj%GetVelocityDirichletBCPointer(dbcNo=2)
  CALL dbc%Set(ConstantNodalValue=0.0_DFP)
  dbc => NULL()
  CALL region%Deallocate()

Vx=Vtop

  CALL SetDirichletBCParam( &
    & param=param, &
    & name="Vx=V", &
    & idof=1, &
    & nodalValueType=Constant, &
    & useFunction=.FALSE.)

  CALL region%Initiate(isSelectionByMeshID=.TRUE.)
  CALL region%Add(dim=obj%nsd-1, meshID=[4])
  CALL region%Set()

  CALL obj%AddVelocityDirichletBC(dbcNo=3, param=param, boundary=region)
  dbc => obj%GetVelocityDirichletBCPointer(dbcNo=3)
  CALL dbc%Set(ConstantNodalValue=V_TOP)
  dbc => NULL()
  CALL region%Deallocate()

Pressure boundary condition

Usually, we do not apply Dirichlet boundary condition for pressure.

  IF( tDirichletBCForPressure .GT. 0 ) THEN
    CALL SetDirichletBCParam( &
      & param=param, &
      & name="P=0", &
      & idof=1, &
      & nodalValueType=Constant, &
      & useFunction=.FALSE.)
    CALL region%Initiate( &
      & isSelectionByNodeNum=.TRUE. )
    CALL region%Add( nodenum=[refPressureNode])
    CALL region%Set()
    !!
    CALL obj%AddPressureDirichletBC(dbcNo=1, param=param, boundary=region)
    CALL region%Deallocate()
    dbc => obj%GetPressureDirichletBCPointer(dbcNo=1)
    CALL dbc%Set(ConstantNodalValue=0.0_DFP)
    dbc => NULL()
  END IF

Set

CALL obj%Set( )

MainComputation

Related to output and backup

  backupNumber = 0
  CALL outfile%Initiate(outfilePrefix//tostring(backupNumber)//'.h5', "NEW")
  CALL outfile%Open()
  CALL Display( "main debug-1" )

Loop-Start: TimeStep

  DO its = 1, TotalTimeSteps
    CALL Display( 'TimeStep = ' // tostring(its) )
    CALL obj%setCurrentTimeStep(its)

Loop-Start: Iteration

    DO iter = 1, maxIter
      CALL Display( "   Iteration = " // tostring(iter) )
      CALL obj%setIterationNumber(iter)
      CALL obj%ApplyDirichletBC()
      CALL obj%AssembleTanmat()
      CALL obj%AssembleRHS()
      CALL obj%Assemble()
      CALL obj%Solve()
      convg = obj%isConverged()
      CALL obj%UpdateIteration(reset=resetIteration)
      IF( convg ) EXIT
    END DO

Loop-End: Iteration

    IF( .not. convg ) THEN
      CALL Display( "program stopped, no convergence" )
      STOP
    END IF

    IF( obj%isSteadyState() .OR. its .EQ. TotalTimeSteps ) THEN
      CALL Display( 'STEADY STATE REACHED' )
      CALL statefile%Initiate(statePrefix//tostring(its)//".h5", "NEW")
      CALL statefile%Open()
      CALL obj%WriteData(statefile, "")
      CALL statefile%Deallocate()
      EXIT
    END IF

    CALL obj%Update(reset=resetTimeStep)

    IF( MOD( its, writeFrequency ) .EQ. 0 ) THEN
      CALL obj%WriteData(outfile, "/"//tostring(its))
    END IF

    IF( MOD( its, SaveStateFrequency ) .EQ. 0 ) THEN
      backupNumber=backupNumber+1
      CALL statefile%Initiate(statePrefix//tostring(its)//".h5", "NEW")
      CALL statefile%Open()
      CALL obj%WriteData(statefile, "")
      CALL statefile%Deallocate()
      !!
      CALL outfile%Deallocate()
      CALL outfile%Initiate( &
        & outfilePrefix//tostring(backupNumber)//'.h5', "NEW")
      CALL outfile%Open()
    END IF

Loop-End: TimeStep

  END DO

!!! note "cleanup"

  CALL outfile%Deallocate()
  CALL obj%Deallocate()
  CALL dom%Deallocate()
  CALL param%Deallocate(); CALL FPL_FINALIZE()

END PROGRAM main

STDBE511 example 5

Header

Declare variables

SetSTDBE511Param

SetLinSolverParam

Domain Initiate

Initiate

AddPorousMaterial

AddFluidMaterial

DirichletBoundaryCondition

Vx=0

Vy=0

Vx=Vtop

Pressure boundary condition

Set

MainComputation

Loop-Start: TimeStep

Loop-Start: Iteration

Loop-End: Iteration

Loop-End: TimeStep

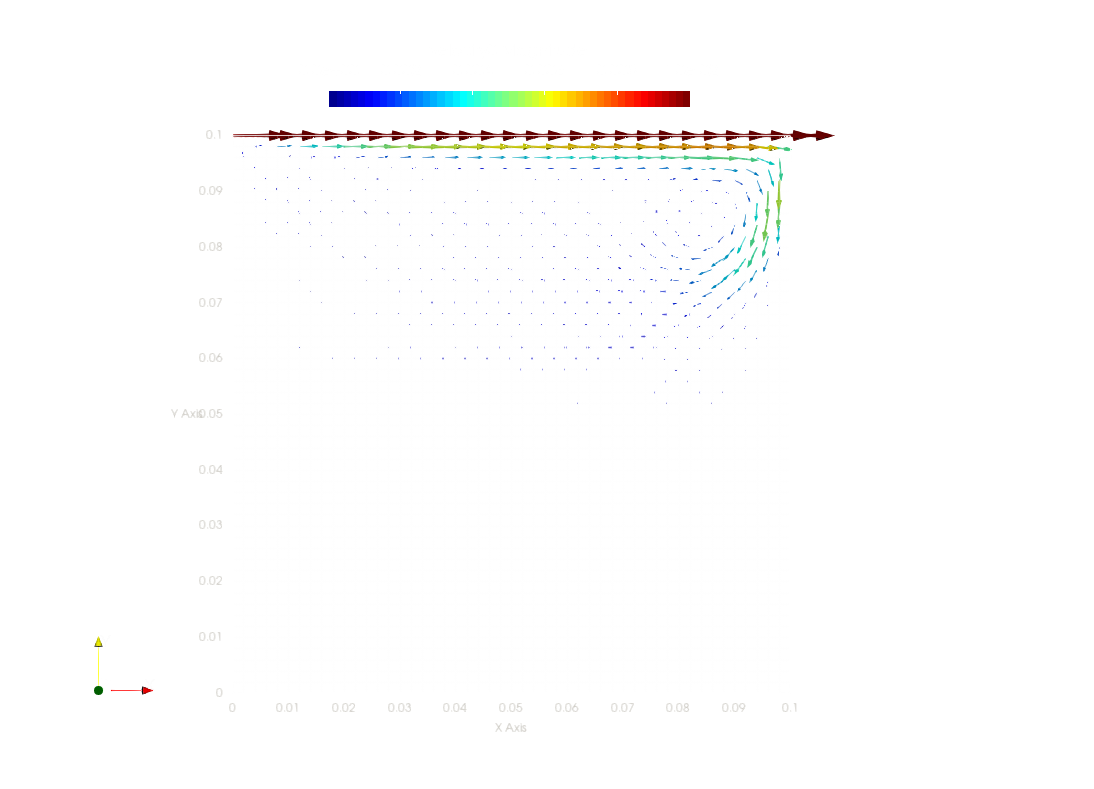

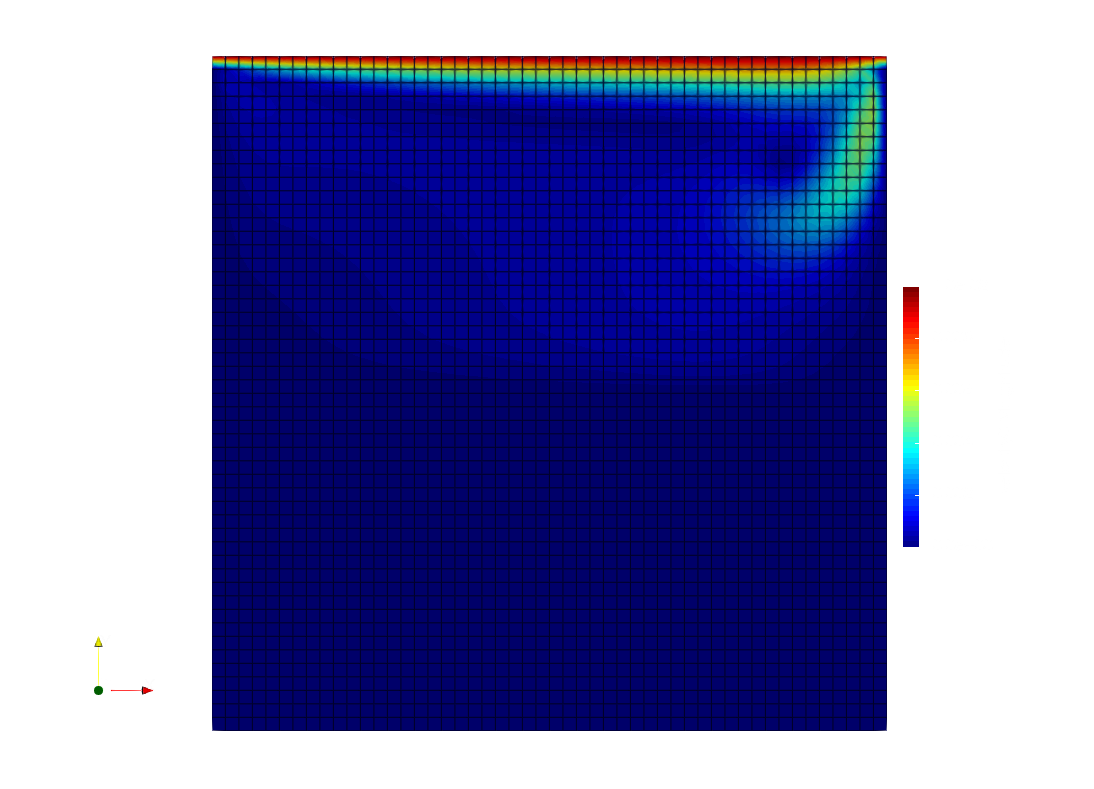

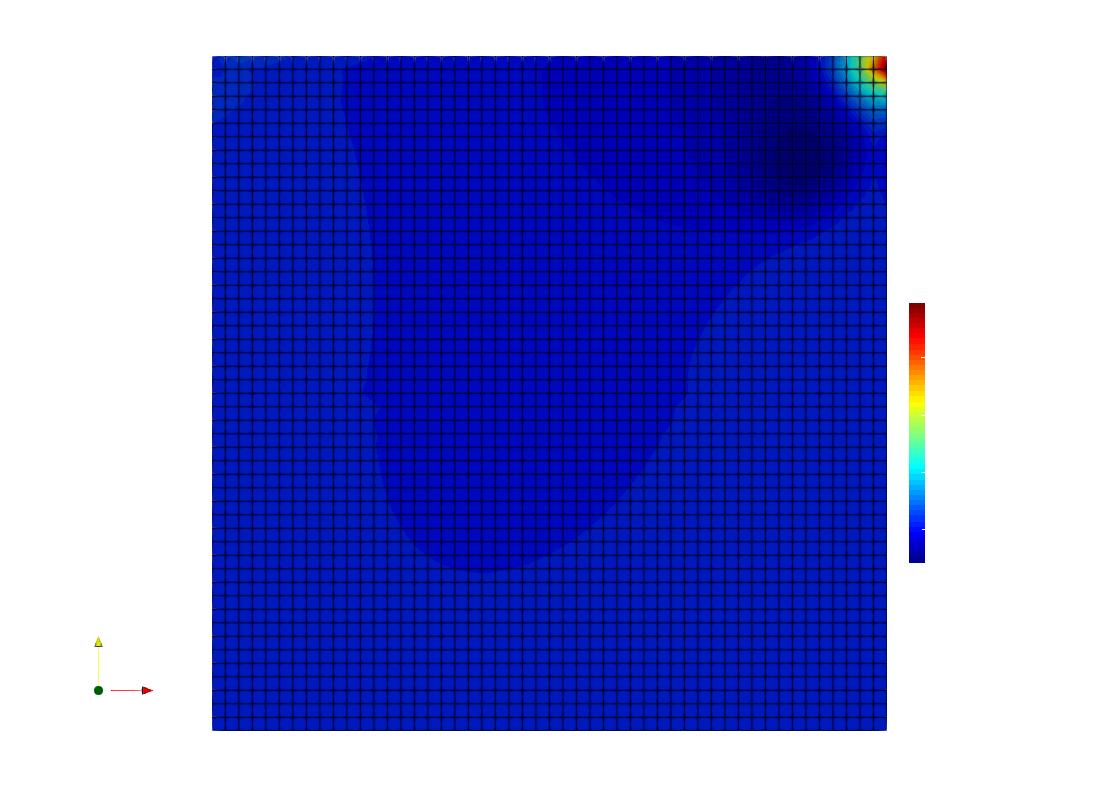

Results

STDBE511 example 5

Header​

Declare variables​

SetSTDBE511Param​

SetLinSolverParam​

Domain Initiate​

Initiate​

AddPorousMaterial​

AddFluidMaterial​

DirichletBoundaryCondition​

Vx=0​

Vy=0​

Vx=Vtop​

Pressure boundary condition​

Set​

MainComputation​

Loop-Start: TimeStep​

Loop-Start: Iteration​

Loop-End: Iteration​

Loop-End: TimeStep​

Results​

Header

Declare variables

SetSTDBE511Param

SetLinSolverParam

Domain Initiate

Initiate

AddPorousMaterial

AddFluidMaterial

DirichletBoundaryCondition

Vx=0

Vy=0

Vx=Vtop

Pressure boundary condition

Set

MainComputation

Loop-Start: TimeStep

Loop-Start: Iteration

Loop-End: Iteration

Loop-End: TimeStep

Results
