Initiate

Initiate an instance of AbstractMeshField_.

@ConstructorMethods

Interface 1 (Initiate by using param)

INTERFACE AbstractMeshFieldInitiate
  MODULE SUBROUTINE Initiate1(obj, param, mesh)
    CLASS(AbstractMeshField_), INTENT(INOUT) :: obj
    TYPE(ParameterList_), INTENT(IN) :: param
    TYPE(Mesh_), TARGET, INTENT(IN) :: mesh
  END SUBROUTINE Initiate1
END INTERFACE AbstractMeshFieldInitiate

Interface 2 (Initiate by copying)

INTERFACE
  MODULE SUBROUTINE Initiate2(obj, obj2, copyFull, copyStructure, &
    & usePointer)
    CLASS(AbstractMeshField_), INTENT(INOUT) :: obj
    CLASS(AbstractMeshField_), INTENT(INOUT) :: obj2
    LOGICAL(LGT), OPTIONAL, INTENT(IN) :: copyFull
    LOGICAL(LGT), OPTIONAL, INTENT(IN) :: copyStructure
    LOGICAL(LGT), OPTIONAL, INTENT(IN) :: usePointer
  END SUBROUTINE Initiate2
END INTERFACE

Interface 3 (Initiate by AbstractMaterial)

INTERFACE
  MODULE SUBROUTINE Initiate3(obj, mesh, material, name, engine)
    CLASS(AbstractMeshField_), INTENT(INOUT) :: obj
    !! AbstractMeshField
    TYPE(Mesh_), TARGET, INTENT(IN) :: mesh
    !! mesh
    CLASS(AbstractMaterial_), INTENT(INOUT) :: material
    !! Abstract material
    CHARACTER(*), INTENT(IN) :: name
    !! name of the AbstractMeshField
    CHARACTER(*), INTENT(IN) :: engine
    !! engine of the AbstractMeshField
  END SUBROUTINE Initiate3
END INTERFACE

Interface 4 (Initiate by UserFunction)

INTERFACE
  MODULE SUBROUTINE Initiate4(obj, mesh, func, name, engine, nnt)
    CLASS(AbstractMeshField_), INTENT(INOUT) :: obj
    !! AbstractMeshField
    TYPE(Mesh_), TARGET, INTENT(IN) :: mesh
    !! mesh
    CLASS(UserFunction_), INTENT(INOUT) :: func
    !! Abstract material
    CHARACTER(*), INTENT(IN) :: name
    !! name of the AbstractMeshField
    CHARACTER(*), INTENT(IN) :: engine
    !! engine of the AbstractMeshField
    INTEGER(I4B), OPTIONAL, INTENT(IN) :: nnt
    !! number of nodes in time
  END SUBROUTINE Initiate4
END INTERFACE

Example 1

Click here to see the example

Example 1

info

This example shows how to initiate an instance of Mesh by reading data from mesh file, which is in HDF5File_ format. We will also construct an instance of STVectorMeshField_.

PROGRAM main
  USE easifemBase
  USE easifemClasses
  IMPLICIT NONE
  TYPE( HDF5File_ ) :: meshfile
  TYPE( Mesh_ ) :: amesh
  TYPE( STVectorMeshField_ ) :: obj
  TYPE( ParameterList_ ) :: param

Step 1:

Initiate and open the mesh file which is in HDF5File_ format.

CALL meshfile%Initiate( FileName="./mesh.h5", MODE="READ" )
CALL meshfile%Open()
CALL amesh%Initiate(hdf5=meshfile, group="/surfaceEntities_1" )

Step 2:

Initiate an instance of STVectorMeshField_.

CALL FPL_INIT(); CALL param%initiate()
CALL SetSTVectorMeshFieldParam( &
  & param=param, &
  & name='aVector', &
  & varType = Constant, &
  & fieldType=TypeField%normal, &
  & engine='NATIVE_SERIAL', &
  & defineOn=Nodal, &
  & nns=6,  &
  & nnt=2 ,  &
  & spaceCompo = amesh%GetNSD())
CALL obj%Initiate( param=param, mesh=amesh)
CALL obj%Display( 'obj: ' )

The above code will initiate an instance of STVectorMeshField_, which will contain following data.

Object INITIATED: TRUE
name: aVector
prefix: STVectorMeshField
fieldType: NORMAL
engine: NATIVE_SERIAL
tSize: 484
defineOn: Nodal
rank: Vector
varType: Constant
shape:
-------
   2
val ALLOCATED: TRUE
mesh ASSOCIATED: TRUE

Let's try to understand the above situation:

In above call (internally) we have saved data in a two-dimensional array val.
The number of rows in val for above example is 1.
Because, we have set varType=Constant, all nodes (we have specified 6 nodes in space and 2 nodes in time) in an element have same value of vector field. Read more about the Shape method.
The number of columns in val is 484, which is same as the total number of elements in the mesh. This is because we have used fieldType=normal in the above example.

Step 3:

  CALL obj%Deallocate()
  CALL amesh%Deallocate()
  CALL meshfile%Close()
  CALL meshfile%Deallocate()
  CALL param%Deallocate(); CALL FPL_FINALIZE()
END PROGRAM main

Example 2

Click here to see the example

Example 2

info

This example shows how to initiate an instance of Mesh by reading data from mesh file, which is in HDF5File_ format. We will also construct an instance of STVectorMeshField_.

PROGRAM main
  USE easifemBase
  USE easifemClasses
  IMPLICIT NONE
  TYPE( HDF5File_ ) :: meshfile
  TYPE( Mesh_ ) :: amesh
  TYPE( STVectorMeshField_ ) :: obj
  TYPE( ParameterList_ ) :: param

Step 1:

Initiate and open the mesh file which is in HDF5File_ format.

CALL meshfile%Initiate( FileName="./mesh.h5", MODE="READ" )
CALL meshfile%Open()
CALL amesh%Initiate(hdf5=meshfile, group="/surfaceEntities_1" )

Step 2:

Initiate an instance of STVectorMeshField_.

CALL FPL_INIT(); CALL param%initiate()
CALL SetSTVectorMeshFieldParam( &
  & param=param, &
  & name='aVector', &
  & varType = Constant, &
  & fieldType=TypeField%Constant, &
  & engine='NATIVE_SERIAL', &
  & defineOn=Nodal, &
  & nns=6,  &
  & nnt=2,  &
  & spaceCompo = amesh%GetNSD() )
CALL obj%Initiate( param=param, mesh=amesh )
CALL obj%Display( 'obj: ' )

The above code will initiate an instance of STVectorMeshField_, which will the contain following data.

Object INITIATED: TRUE
name: aVector
prefix: STVectorMeshField
fieldType: CONSTANT
engine: NATIVE_SERIAL
tSize: 1
defineOn: Nodal
rank: Vector
varType: Constant
shape:
-------
   2
val ALLOCATED: TRUE
mesh ASSOCIATED: TRUE

Let's try to understand the above code:

We save data in a two dimensional array val.
The number of rows in val for above example is 1. This is because the vector data is constant in space and time inside the element. Because, we have set varType=Constant, all nodes (we have specified 6 nodes in space and 2 nodes in time) in an element has constant value. Read more about the Shape method.
The number of columns in val is 1, this is because the fieldType=Constant (i.e., constant across all the elements).

Step 3:

  CALL obj%Deallocate()
  CALL amesh%Deallocate()
  CALL meshfile%Close()
  CALL meshfile%Deallocate()
  CALL param%Deallocate(); CALL FPL_FINALIZE()
END PROGRAM main

Example 3

Click here to see the example

info

This example shows how to initiate an instance of Mesh by reading data from mesh file, which is in HDF5File_ format. We will also construct an instance of STScalarMeshField_.

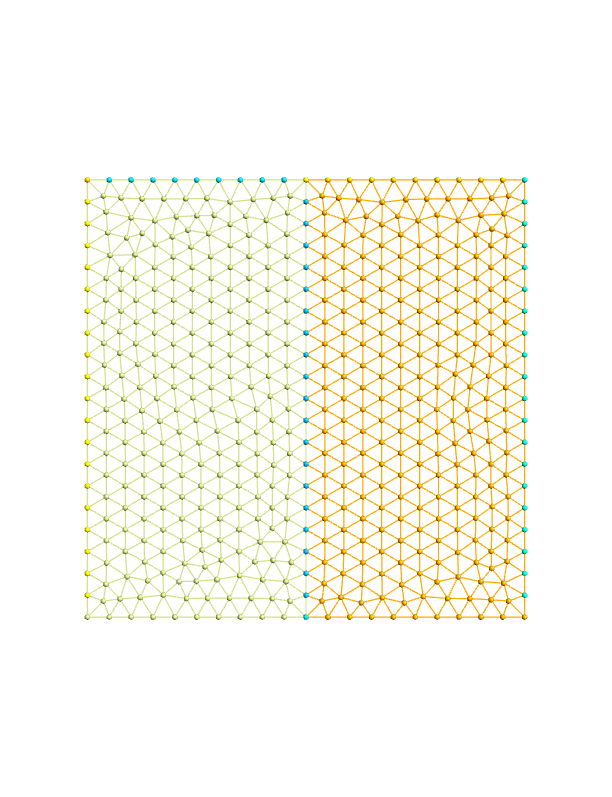

The mesh is given below

PROGRAM main
  USE easifemBase
  USE easifemClasses
  IMPLICIT NONE
  TYPE( HDF5File_ ) :: meshfile
  TYPE( Mesh_ ) :: amesh
  TYPE( STScalarMeshField_ ) :: obj
  TYPE( ParameterList_ ) :: param

Step 1:

Initiate and open the mesh file which is in HDF5File_ format.

CALL meshfile%Initiate( FileName="./mesh.h5", MODE="READ" )
CALL meshfile%Open()
CALL amesh%Initiate(hdf5=meshfile, group="/surfaceEntities_1" )

Step 2:

Initiate an instance of STScalarMeshField_.

CALL FPL_INIT(); CALL param%initiate()
CALL SetSTScalarMeshFieldParam( &
  & param=param, &
  & name='aScalar', &
  & varType = Space, &
  & fieldType=TypeField%Normal, &
  & engine='NATIVE_SERIAL', &
  & defineOn=Nodal, &
  & nns=6, nnt=2 )
CALL obj%Initiate( param=param, mesh=amesh )
CALL obj%Display( 'obj: ' )

The above code will initiate an instance of STScalarMeshField_, which will contain following data.

Object INITIATED: TRUE
name: aScalar
prefix: STScalarMeshField
fieldType: NORMAL
engine: NATIVE_SERIAL
tSize: 484
defineOn: Nodal
rank: Scalar
varType: Space
shape:
-------
   6
val ALLOCATED: TRUE
mesh ASSOCIATED: TRUE

Let's try to understand the above code:

We save data in a two dimensional array val.
The number of rows in val for above example is 6. This is because we have set varType=Space, which means the scalar data changes in Space inside the element. Note that the data does not change in time in an element.
Because, we have set varType=Space, therefore val(1:6) denotes the value of scalar field at 6 nodes of element. Read more about the Shape method.
The number of columns in val is 484 (which is the total number of elements in the mesh), this is because the fieldType=Regular (i.e., changes across all the elements).

Step 3:

  CALL obj%Deallocate()
  CALL amesh%Deallocate()
  CALL meshfile%Close()
  CALL meshfile%Deallocate()
  CALL param%Deallocate(); CALL FPL_FINALIZE()
END PROGRAM main

Example 4

Click here to see the example

info

This example shows how to initiate an instance of Mesh by reading data from mesh file, which is in HDF5File_ format. We will also construct an instance of STScalarMeshField_.

The mesh is given below

PROGRAM main
  USE easifemBase
  USE easifemClasses
  IMPLICIT NONE
  TYPE( HDF5File_ ) :: meshfile
  TYPE( Mesh_ ) :: amesh
  TYPE( STScalarMeshField_ ) :: obj
  TYPE( ParameterList_ ) :: param

Step 1:

Initiate and open the mesh file which is in HDF5File_ format.

CALL meshfile%Initiate( FileName="./mesh.h5", MODE="READ" )
CALL meshfile%Open()
CALL amesh%Initiate(hdf5=meshfile, group="/surfaceEntities_1" )

Step 2:

Initiate an instance of STScalarMeshField_.

CALL FPL_INIT(); CALL param%initiate()
CALL SetSTScalarMeshFieldParam( &
  & param=param, &
  & name='aScalar', &
  & varType =Time, &
  & fieldType=TypeField%Normal, &
  & engine='NATIVE_SERIAL', &
  & defineOn=Nodal, &
  & nns=6, nnt=2 )
CALL obj%Initiate( param=param, mesh=amesh )
CALL obj%Display( 'obj: ' )
call display(amesh%GetTotalElements(), "total elements: " )

The above code will initiate an instance of STScalarMeshField_, which will contain following data.

Object INITIATED: TRUE
name: aScalar
prefix: STScalarMeshField
fieldType: NORMAL
engine: NATIVE_SERIAL
tSize: 484
defineOn: Nodal
rank: Scalar
varType: Time
shape:
-------
   6
val ALLOCATED: TRUE
mesh ASSOCIATED: TRUE
total elements: 484

Let's try to understand the above code:

We save data in a two dimensional array val.
The number of rows in val for above example is 6. This is because we have set varType=Time, which means the scalar data changes in Time (and remains constant in space) inside the element.
Because, we have set varType=Time, therefore val(1:6, iel) denotes the value of scalar field at 6 time-nodes of element. Read more about the Shape method.
The number of columns in val is 484 (which is the total number of elements in the mesh), this is because the fieldType=Regular (i.e., changes across all the elements).

Step 3:

  CALL obj%Deallocate()
  CALL amesh%Deallocate()
  CALL meshfile%Close()
  CALL meshfile%Deallocate()
  CALL param%Deallocate(); CALL FPL_FINALIZE()
END PROGRAM main

Example 5

Click here to see the example

info

This example shows how to initiate an instance of Mesh by reading data from mesh file, which is in HDF5File_ format. We will also construct an instance of STScalarMeshField_.

The mesh is given below

PROGRAM main
  USE easifemBase
  USE easifemClasses
  IMPLICIT NONE
  TYPE( HDF5File_ ) :: meshfile
  TYPE( Mesh_ ) :: amesh
  TYPE( STScalarMeshField_ ) :: obj
  TYPE( ParameterList_ ) :: param

Step 1:

Initiate and open the mesh file which is in HDF5File_ format.

CALL meshfile%Initiate( FileName="./mesh.h5", MODE="READ" )
CALL meshfile%Open()
CALL amesh%Initiate(hdf5=meshfile, group="/surfaceEntities_1" )

Step 2:

Initiate an instance of STScalarMeshField_.

CALL FPL_INIT(); CALL param%initiate()
CALL SetSTScalarMeshFieldParam( &
  & param=param, &
  & name='aScalar', &
  & varType =Time, &
  & fieldType=TypeField%Normal, &
  & engine='NATIVE_SERIAL', &
  & defineOn=Nodal, &
  & nns=6, nnt=2 )
CALL obj%Initiate( param=param, mesh=amesh )
CALL obj%Display( 'obj: ' )
call display(amesh%GetTotalElements(), "total elements: " )

The above code will initiate an instance of STScalarMeshField_, which will contain following data.

Object INITIATED: TRUE
name: aScalar
prefix: STScalarMeshField
fieldType: NORMAL
engine: NATIVE_SERIAL
tSize: 484
defineOn: Nodal
rank: Scalar
varType: Time
shape:
-------
   6
val ALLOCATED: TRUE
mesh ASSOCIATED: TRUE
total elements: 484

Let's try to understand the above code:

We save data in a two dimensional array val.
The number of rows in val for above example is 6. This is because we have set varType=Time, which means the scalar data changes in Time (and remains constant in space) inside the element.
Because, we have set varType=Time, therefore val(1:6, iel) denotes the value of scalar field at 6 time-nodes of element. Read more about the Shape method.
The number of columns in val is 484 (which is the total number of elements in the mesh), this is because the fieldType=Regular (i.e., changes across all the elements).

Step 3:

  CALL obj%Deallocate()
  CALL amesh%Deallocate()
  CALL meshfile%Close()
  CALL meshfile%Deallocate()
  CALL param%Deallocate(); CALL FPL_FINALIZE()
END PROGRAM main

Initiate

Initiate

Interface 1 (Initiate by using param)​

Interface 2 (Initiate by copying)​

Interface 3 (Initiate by AbstractMaterial)​

Interface 4 (Initiate by UserFunction)​

Example 1​

Example 1

Step 1:​

Step 2:​

Step 3:​

Example 2​

Example 2​

Step 1:​

Step 2:​

Step 3:​

Example 3​

Step 1:​

Step 2:​

Step 3:​

Example 4​

Step 1:​

Step 2:​

Step 3:​

Example 5​

Step 1:​

Step 2:​

Step 3:​

Interface 1 (Initiate by using param)

Interface 2 (Initiate by copying)

Interface 3 (Initiate by AbstractMaterial)

Interface 4 (Initiate by UserFunction)

Example 1

Step 1:

Step 2:

Step 3:

Example 2

Example 2

Step 1:

Step 2:

Step 3:

Example 3

Step 1:

Step 2:

Step 3:

Example 4

Step 1:

Step 2:

Step 3:

Example 5

Step 1:

Step 2:

Step 3:
